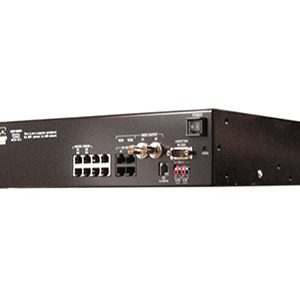

Aiphone AX-084C Central Exchange Unit for AX Series

The Aiphone AX-084C Central Exchange Unit is an essential component of the AX integrated video and audio security system, designed to enhance the functionality and connectivity of your security setup. With its advanced wiring hub, multiple ports for master and sub-station connections, and programmable features, the AX-084C ensures seamless communication and control. Its user-friendly installation process and comprehensive support materials make it an ideal choice for both residential and commercial applications.

Aiphone AX-084C Central Exchange Unit Features

• Wiring Hub: Facilitates connection of the AX system using CAT-5e cable, ensuring reliable data transmission.
• Master Station Ports: Includes 4 x RJ45 ports for master stations, allowing for efficient management of communication.
• Sub Station Ports: 8 x RJ45 ports for door/sub stations provide extensive connectivity options for enhanced security.
• Power Supply Inputs: 2 x 24V DC power supply input terminals ensure stable operation and reliability.
• Door Release Contacts: 8 x dry contacts for door release (24V AC/DC 500mA) facilitate remote access control.
• Video Outputs: 2 BNC composite video outputs and switching triggers enable video integration for enhanced monitoring.
• Expandable System: Supports up to 104 doors with additional AX-320C add-on exchanges, providing scalability for larger installations.
• CO Line Output: Transfer output to Viking K-1900-5 auto-dialer for emergency communication capabilities.
• Rack-mountable Design: Designed for easy installation in standard racks, optimizing space usage.
• Programmable Features: Customizable functionality through supplied software enhances system adaptability.
• Comprehensive Support: Comes with USB to serial adaptor, software program, installation manual, and quick-start guide for user convenience.

Aiphone AX-084C Detailed Specifications
