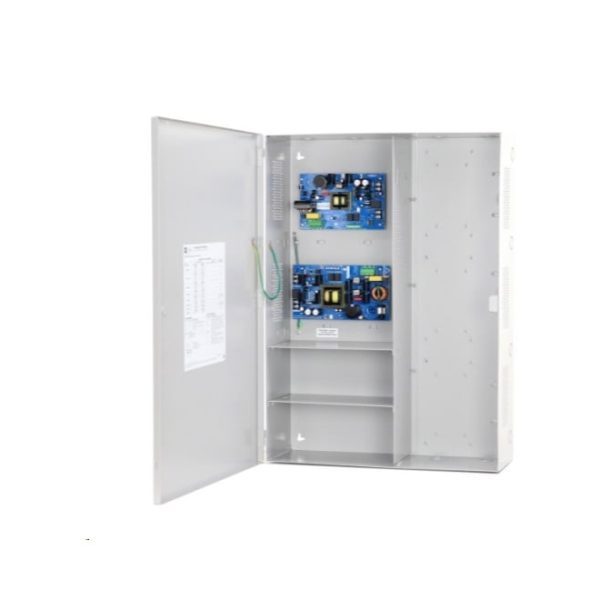

Altronix MAXIMAL77EV Power Supply Charger, Expandable, Dual 24VDC outputs @ 9.7A each

<p>Maximal77EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.</p>
<p class=”features_dec”>Features</p>
<h5>Input</h5>
<ul>
<li>220VAC (working range 198VAC – 256VAC), 50/60Hz, 6.25A input</li>
</ul>
<h5>Output</h5>
<ul>
<li>24VDC outputs</li>
</ul>
<h5>Maximum output current Options:</h5>
<ul>
<li>A) 24VDC @ 10A plus 24VDC @ 10A</li>
</ul>
<li>Filtered and electronically regulated outputs (built-in power supply)</li>
<li>Thermal and short circuit protection with auto reset</li>
</ul>
<h5>Fuse Ratings</h5>
<ul>
<li>Power Supply input fuse rated @ 10A/250V</li>
</ul>
<h5>Supervision</h5>
<ul>
<li>AC fail supervision (form “C” contacts)</li>
<li>Notification trigger is selectable for 30 seconds (factory set) or 6 hours</li>
<li>Low battery and battery presence supervision (form “C” contact)</li>
</ul>
<h5>Battery Backup</h5>
<ul>
<li>Built-in charger for sealed lead acid or gel type batteries</li>
<li>Automatic switch over to stand-by battery when AC fails</li>
<li>Zero voltage drop when unit switches over to battery backup (AC failure condition)</li>
</ul>
<h5>Visual Indicators</h5>
<ul>
<li>AC input and DC output LED indicators</li>
</ul>
<h5>Electrical</h5>
<h5>Temperature:</h5>
<ul>
<li>Operating: 0° C to 49° C (32° F to 120° F)</li>
<li>Storage: – 20° C to 70° C ( – 4° F to 158° F)</li>
<li>Relative Humidity 85% +/- 5%</li>
<li>BTU/Hr (approx.): 246 BTU/Hr</li>
<li>System AC input VA requirement: 1375VA</li>
</ul>
