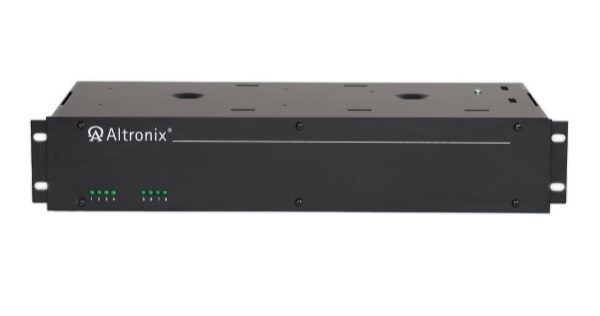

Altronix R248I220 CCTV Power Supply, 8 Fused Isolated Outputs, 24VAC @ 12.5A, 220VAC, 2U

The R248i220 provides 24VAC distributed via eight (8) isolated fuse protected outputs for powering CCTV cameras, heaters and other video accessories.

Features

Input

• 220VAC, 50/60Hz, 1.4A

Output

• Eight (8) fuse protected isolated outputs
• 24VAC @ 12.5A (300VA) supply current (1.5625A per device, 3.5A max.)
• Outputs are rated @ 3.5A
• Surge suppression

Electrical Temperature

• Operating: 0° C to 49° C (32° F to 120° F)
• Storage: – 20° C to 70° C ( – 4° F to 158° F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 154 BTU/Hr
• System AC input VA requirement: 308VA

Features

• Eight (8) power LEDs
• Illuminated master power disconnect circuit breaker with manual reset
• 3-wire grounded line cord
• Removable terminal blocks with locking screw flange
• Spare fuses provided
