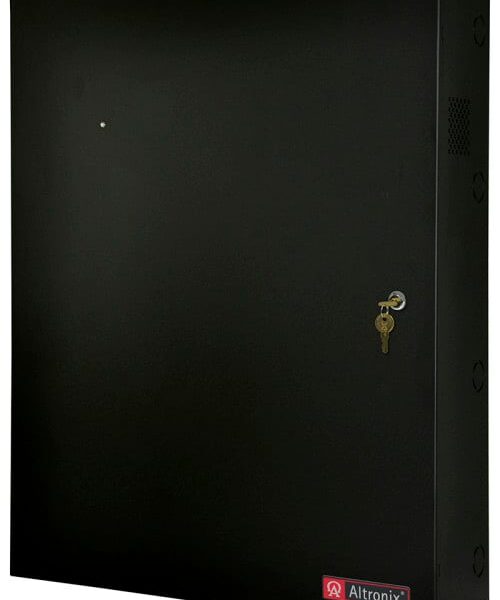

Altronix T2KSK7F12D kit consists of Trove2 enclosure, TKS2 Keri Systems/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) dual output PTC access power controller, one (1) voltage regulator, one (1) dual input PTC power distribution module, and one (1) PTC access power controller.This kit also accommodate various combinations of Keri Systems boards for up to twelve (12) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Features
AL1024ULXB2 Power Supply/Charger
Input
- Voltage: 115VAC 60Hz, 4.2A max
- Main Fuse: 5A / 250V
Outputs
- Voltage: 24VDC
- Current: 10A @ 24VDC continuous max
- Other: Overvoltage protection. Filtered and regulated
Battery Backup
- Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure)
- Type: Sealed lead acid or gel type
- Failover: Upon AC loss, instantaneous
Supervision
- AC Failure: Form “C” contacts
- Battery: Form “C” contacts
Indicators LED
- Input: 115VAC is present
- DC Output: Powered
- Battery: Discharged or not connected
ACM4CB Access Power Controller
Input
- Voltage: 24VDC from AL1024ULXB2
- Input Fuse: 10A / 32V
Outputs
- Voltage: 24VDC
- Four (4) independently controlled 2.5A outputs:
- a) Four (4) Fail-Safe and/or Fail-Secure power outputs
- b) Four (4) dry form “C” 5A rated relay outputs
- c) Any combination of the above
- Four (4) auxiliary power outputs (unswitched)
Outputs Ratings
- PTCs: 2.5V
Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized)
- Green LED: FACP disconnect is triggered
VR6 Voltage Regulator
Input
- Voltage: 24VDC from AL1024ULXB2
Output
- Voltage: 12VDC
- Current: 6A continuous
- Other: Surge suppression
Indicators LED
- Input: 24VDC is present
- Output: Powered
ACMS8CB Dual Input Access Power Controller
Input
- Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6
- Input PTC: 9A
Outputs
- Voltage: 12VDC and/or 24VDC
- Eight (8) 24VDC independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A
- b) Auxiliary power outputs (unswitched)
- c) Any combination of the above
Outputs Ratings
- PTCs: 2.5A
Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized)
- Green LED: FACP disconnect is triggered
PDS8CB Dual Input Power Distribution Module
Input
- Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2
- Input PTC: 9A
Outputs
- Voltage: 12VDC and/or 24VDC
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
- Individual outputs may be set to OFF position for servicing
Outputs Ratings
- PTCs: 2.5A
Indicators (LED)
- DC Output: Eight (8) individual output LEDs
- Green: 12VDC
- Red: 24VDC
Environmental
Temperature
- Operating: 0° C to 50° C (32° F to 122° F)
- Storage: – 20° C to 70° C ( – 4° F to 158° F)
Relative Humidity
- Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
- 131 BTU/Hr
