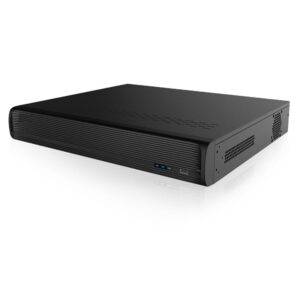

The CTPR-TV832A-1T from Cantek Plus is a cutting-edge 32 channel HD-TVI / CVI / AHD / SD-DEF digital video recorder with a generous 1TB of storage. This versatile DVR supports multiple video formats, ensuring compatibility with existing systems while delivering exceptional performance for security surveillance needs.
Cantek Plus CTPR-TV832A-1T Camera Features
- 32 CH All-in-One DVR: Supports HD-TVI, CVI, AHD (1080P / 720P), Analog (Auto-Detect), and IP for maximum compatibility.
- 16 CH Audio: Integrated audio channels provide a comprehensive surveillance solution.
- Multiple Output Options: HDMI, VGA, and BNC (CVBS Spot) outputs for flexible installation.
- 2 eSATA Ports: Expandable storage options for increased recording capacity.
- Rack Mountable: 2U, 19” design fits standard racks for professional setups.
- Hybrid Live & Playback: 1080P / 720P / 960H (WD1) support for versatile viewing options.
- High Frame Rate Recording: 30FPS @ 720P & 1080P-Lite / 12FPS @ 1080P for smooth video playback.
- Pentaplex Operation: Simultaneous live view, recording, playback, backup, and network access.
- Innovative GUI: User-friendly graphical interface for easy navigation.
- Multi-Mode Hybrid Recording: Continuous, motion, and manual recording options for flexibility.
- Advanced Search Features: Smart, time, calendar, event, and thumbnail search for efficient video retrieval.
- Archiving Options: USB, IE Browser, Safari, and CVMS Software for convenient video management.
- P2P Technology: Easy scan, connect, and view capabilities with no port forwarding required.
- Comprehensive Network Protocols: DHCP, DDNS, PPPoE for seamless network integration.
- Dual Stream Technology: Optimizes performance across various network environments.
- Multi-User Access: Individual privileges for secure multi-user log-in.
- Simultaneous Monitor Output: HDMI & VGA output up to 1080P for dual display options.
- PTZ Control: Supports up to 255 presets and 8 tours for advanced camera control.
- Mobile Viewing App: Available for both Apple and Android for on-the-go access.
- Client Software: Compatibility with CVMS (Windows) and NVMS-1200 (Mac OS).
- Long Distance Transmission: HD video over coax up to 1500ft without a repeater.
- Backward Compatibility: Works with existing Analog, 960H, and 1000TVL cameras for easy upgrades.
Cantek Plus CTPR-TV832A-1T Detailed Specifications
| Feature | Details |
| Channels | 32 CH |
| Audio Channels | 16 CH |
| Video Formats | HD-TVI, CVI, AHD, Analog (Auto-Detect), IP |
| Recording Resolution | 1080P / 720P / 960H (WD1) |
| Recording Frame Rate | 30FPS @ 720P & 1080P-Lite / 12FPS @ 1080P |
| Pentaplex Operation | Live, Record, Playback, Backup, Network |
| Storage Options | 1TB internal storage with 2 eSATA ports |
| Output Ports | HDMI, VGA, BNC (CVBS Spot) |
| Network Protocols | DHCP, DDNS, PPPoE |
| Mobile App | Mobile CVMS (Apple & Android) |
| Client Software | CVMS (Windows), NVMS-1200 (Mac OS) |
| Dimensions | 2U, 19” Rack Mountable |
| Transmission Distance | Up to 1500ft over coax without repeater |
| Compatibility | Backward compatible with Analog, 960H, 1000TVL Cameras |
