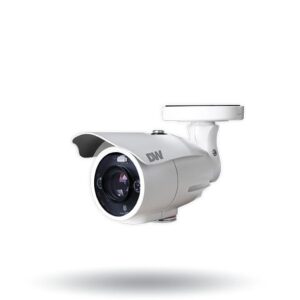

The Digital Watchdog DWC-LPR650UW 1080p HD-AHD/TVI/CVI Analog LPR Bullet Camera is designed for high-performance license plate recognition under diverse conditions. With its advanced 2.1MP sensor, it captures clear images at real-time 30fps and supports various signal types, making it a versatile addition to any surveillance system. Its robust IP66 rated housing ensures durability, while intelligent features enhance performance in challenging environments.
Digital Watchdog DWC-LPR650UW Camera Features
- Universal HD over Coax® technology: Supports HD-Analog, HD-TVI, HD-CVI, and legacy analog signals for versatile installation options.
- 2.1MP/1080p image sensor: Provides high-resolution images at real-time 30fps for clear monitoring.
- HD Analog LPR™ technology: Effectively captures reflective license plates at speeds up to 50mph, with a 13′ to 30′ range.
- Reliable performance: Operates efficiently under various lighting conditions, ensuring effective monitoring.
- External OSD and lens adjustment: Allows for easy customization and setup for optimal performance.
- 6~50mm varifocal p-iris lens: Offers flexibility in field of view and depth of field for tailored surveillance.
- OSD control via coaxial (UTC): Simplifies configuration and adjustments through existing coaxial cables.
- 115’ Smart IR™: Provides enhanced night vision with intelligent camera synchronization for improved low-light performance.
- Smart DNR™ 3D digital noise reduction: Minimizes noise for clearer images in low-light environments.
- Highlight masking exposure (HME): Enhances image quality in high-contrast scenes.
- Auto sensing 24VAC/12VDC: Ensures compatibility with existing power systems and includes line lock for stability.
- Easy icon driven OSD menu: Features a built-in joystick for intuitive navigation and setup.
- Programmable Privacy Zones: Allows users to configure areas of the image to remain private.
- Auto gain control (AGC): Automatically adjusts the camera settings for optimal image quality.
- UL listed: Meets recognized safety standards for electrical devices.
- Backlight compensation (BLC): Improves visibility in backlit situations.
- Dynamic range compressor (DRC): Reveals details in low-light conditions, enhancing image clarity.
- NDAA compliant: Meets regulations for procurement by the U.S. government.
- IP66 environmental rating: Ensures the camera is dust-tight and water-resistant, suitable for outdoor use.
Digital Watchdog DWC-LPR650UW Detailed Specifications
| Model | DWC-LPR650UW |
| Resolution | 2.1MP/1080p |
| Frame Rate | 30fps |
| Lens Type | 6~50mm varifocal p-iris |
| IR Range | 115’ Smart IR™ |
| Power Supply | Auto sensing 24VAC/12VDC |
| Environmental Rating | IP66 |
| Weight | 2.5 lbs |
| Dimensions | 11.5” x 4.5” x 4.5” |
| Compliance | NDAA compliant, UL listed |
