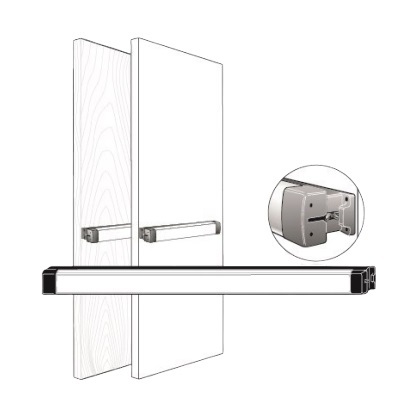

Adams Rite 3700A36BUS32 Fire-Rated Rim Exit Device without Monitoring Switch in Bright Stainless

The 3700A36BUS32 from Adams Rite is a Fire-Rated Rim Exit Device without Monitoring Switch in Bright Stainless. The 3700 series Exit Device has patented “Starwheel” bolt interlocks door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design for clean sight lines and is very easy to install.

Features

• Finish: Bright Stainless pushbar finish that complements modern aesthetics.
• Length: Pushbar length of 42 inches for easy access.
• Fire Rating: Fire Rated for 3 hours, ensuring safety in emergencies.
• Door Size: Max size single doors: 4’0″ x 80″, suitable for various installations.
• Double Egress: Max Size for Pairs and Double Egress: 8’0″ x 8’0″, accommodating larger openings.
• Material: Pushbar made of extruded aluminum, clad or anodized material for durability.
• Door Thickness: Suits 1-3/4″ standard up to 2-1/4″, versatile for different door types.
• Stile Width: Minimum 3-3/4″ Stile requirement for compatibility.
• Projection: 2-5/8″ when fully projected, 1-5/8″ when dogged for adjustable functionality.
• Operation: Non-handed operation and lever entry trim is field reversible for flexibility.
• Security: Patented top latching mechanism interlocks the door to frame for enhanced security.
• Construction: Strong and durable construction for a high level of security.
• Installation: Easy to install with clean and unobtrusive design for clean sight lines.
• Strength: Grade 1 strength for superior performance.
• Fasteners: Standard self-tapping screws fastener for installation convenience.
• Dogging: Standard dogging with hex key for added security features.
• Monitoring: No monitoring switch feature for straightforward operation.
• Starwheel Bolt:
  – When door closes, the interlocking noseguard and starwheel bolt close around the strike, securing the door.
  – When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike, providing solid security and preventing jamb spreading.

Adams Rite 3700A36BUS32 Fire-Rated Rim Exit Device Specifications
