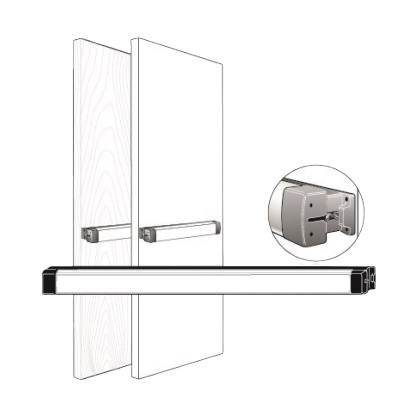

Adams Rite 3700A36BUS32D Fire-Rated Rim Exit Device without Monitoring Switch in Satin Stainless

The 3700A36BUS32D from Adams Rite is a Fire-Rated Rim Exit Device without Monitoring Switch in Bright Stainless. The 3700 series Exit Device has patented “Starwheel” bolt interlocks door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design for clean sight lines and is very easy to install.

Features

• Satin Stainless pushbar finish: Enhances the aesthetic appeal and provides a durable surface.
• Pushbar length: 42 inches, ensuring ease of access in emergency situations.
• Fire Rated- 3 Hours: Provides reliable performance during fire emergencies.
• Max size single doors: 4’0″ x 80″, accommodating a variety of door sizes.
• Max Size Pairs and Double Egress: 8’0″ x 8’0″, ideal for large entryways.
• Pushbar material: Made of extruded aluminum, clad or anodized material for durability.
• Door Thickness: Suits 1-3/4″ standard up to 2-1/4″, ensuring compatibility with most doors.
• Stile Width: Minimum 3-3/4″ Stile, providing versatility in installation.
• Projection: 2-5/8″ when fully projected, 1-5/8″ when dogged, optimizing space usage.
• Non-handed operation: Lever entry trim is field reversible for flexible installation options.
• Patented top latching mechanism: Interlocks the door to frame for enhanced security.
• Strong and durable construction: Ensures a high level of security against unauthorized access.
• Easy to install: Features a clean and unobtrusive design for improved sight lines.
• Grade 1 strength: Rated for high durability and performance standards.
• Standard self-tapping screws fastener: Simplifies installation process.
• Standard dogging with hex key: Ensures reliable door operation.
• No monitoring switch feature: Simplifies device functionality.
• Starwheel Bolt:
  – When door closes, the interlocking noseguard and starwheel bolt close around the strike, the deadlocking slide springs over and thus locking the starwheel bolt to the strike.
  – When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

Adams Rite 3700A36BUS32D Detailed Specifications
