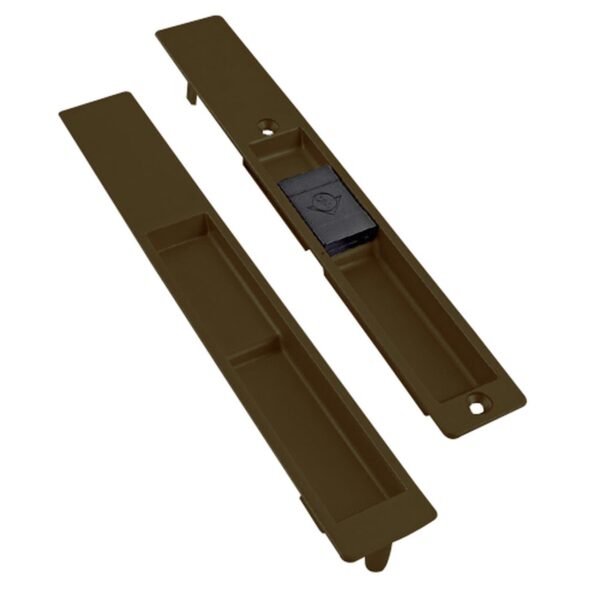

Adams Rite 4189-09-02-121IB Flush Locksets Trim for 1-7/16″ to 1-5/8″ Stile Thickness in Dark Bronze Anodized

The 4189-09-02-121IB from Adams Rite is a flush locksets trim for 1-7/16″ to 1-5/8″ stile thickness in dark bronze anodized. The 4189 series Flush Locksets for sliding doors combine the time-tested and field-proven Adams Rite MS1847 with a slide button and features the adjustable self-protecting bolt. It functions with projecting only 1/10″ from the door stile on either side, the 4189 series locksets allow doors to slide freely past other sliding units or stationary panels. There are no projecting handles to tear draperies or prevent the door from being “stacked” in a wall packet. It operates from inside by a simple up or down movement of a slide button, set flush in the deeply recessed finger pull. It is not recommended for wood doors.

Adams Rite 4189-09-02-121IB Lockset Features

• Dark Bronze Anodized Finish: Provides a durable and aesthetically pleasing exterior that resists wear and corrosion.
• Flush Locksets for Sliding Doors: Designed specifically for sliding applications, ensuring smooth operation without obstruction.
• Variable Backset: Minimum 5/8″ to maximum 1-9/32″, allowing for flexible installation options.
• Lockset Exterior without Cylinder: Simplifies installation and reduces maintenance requirements.
• Inside Operation: Vertical slide button projects or retracts deadlock bolt for easy and secure locking mechanism.
• Stile Thickness Compatibility: Accommodates 1-7/16″ to 1-5/8″ thick stiles, making it versatile for various door types.
• Minimum Clear Depth: Stile depth of backset plus 9/16″ ensures proper fit and function.
• Escutcheons: Made from zinc alloy with satin silver epoxy for a sleek, modern look.
• Lock Face Radius: Provides a rounded edge for safety and ease of use.
• Not Recommended for Wood Doors: Ensures optimal performance when used with appropriate materials.

Adams Rite 4189-09-02-121IB Detailed Specifications
