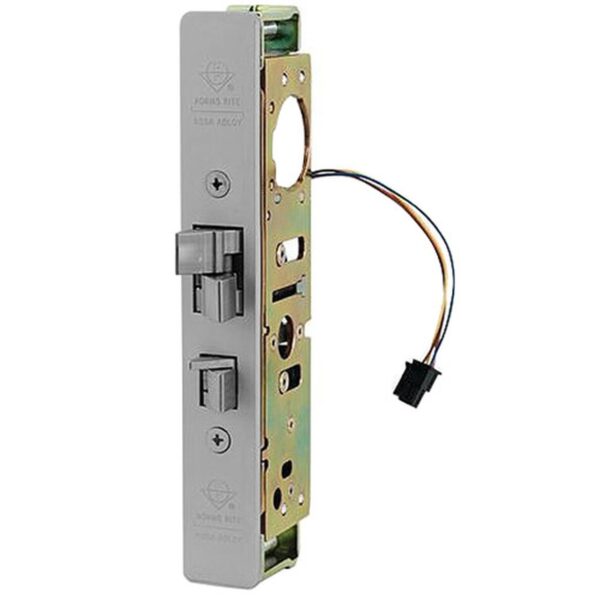

The 4300-20-202-628 from Adams Rite is a steel hawk elatch electrified lock for radius mortised strike in clear. The 4300 series Deadlatch combines mechanical locking hardware with electrified access control while working within standard aluminum entrance door preparations. It is always operable from the inside via handle or paddle device. The entry is done via keyed mortise cylinder or access control element. To operate turn key, apply voltage and operate handle or paddle to release the spring-loaded latchbolt. It is electrically-rated for continuous duty for timed applications.
Adams Rite 4300-20-202-628 Lock Features
- Clear Anodized Finish: Provides a sleek appearance while enhancing durability against environmental factors.
- Aluminum Construction: Lightweight yet strong, ensuring longevity and ease of installation.
- Field-Selectable Voltage Operation: Allows compatibility with 12 or 24 VAC/VDC power sources for versatile installation.
- Cylinder Backset: 31/32″ backset ensures proper alignment with standard door preparations.
- Corrosion-Resistant Steel Case: Measures 15/16″ x 5-13/16″ in depth, designed for durability and resistance against wear.
- Grade 1 Standard: Meets the highest industry standards for security and performance.
- Minimum Door Thickness: 1-3/4″ requirement ensures compatibility with most commercial doors.
- Universal Cam Plug: Supplied 4581 works with specified handles or paddle operators for flexibility.
- Access Control Interface: Easily integrates with existing access control systems for enhanced security.
- Continuous Duty Rating: Electrically rated for reliable performance in timed applications.
- Standard Mortise Cylinder Use: Compatible with any standard mortise cylinder featuring an MS cam for ease of replacement.
- Faceplate Dimensions: Measures 1″ x 6-7/8″ to fit standard installation requirements.
- Stainless Steel Latchbolt: Features a 5/8″ x 1″ x 5/8″ throw for secure locking.
- Non-Monitored Operation: Simple and effective locking mechanism without the need for monitoring.
- Radius Strike Shape: Designed with a standard stiles lip length for a clean fit.
Adams Rite 4300-20-202-628 Detailed Specifications
| Feature | Details |
| Product Type | Electrified Lock |
| Model Number | 4300-20-202-628 |
| Material | Steel and Aluminum |
| Finish | Clear Anodized |
| Voltage | 12 or 24 VAC/VDC |
| Cylinder Backset | 31/32″ |
| Dimensions | 15/16″ x 5-13/16″ depth |
| Security Rating | Grade 1 |
| Minimum Door Thickness | 1-3/4″ |
| Latchbolt Type | Stainless Steel |
| Faceplate Size | 1″ x 6-7/8″ |
| Operation Type | Non-Monitored |
