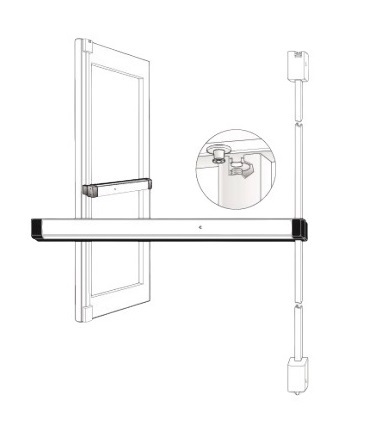

Adams Rite 8233M36 Narrow Stile Surface Vertical Rod Exit Device with Single Switch Monitor, 36″ in Black Anodized

The 8233M36 from Adams Rite is a narrow stile surface vertical rod exit device with single switch monitor, 36 inches in Black Anodized. The 8233 series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.

Features

• Black Anodized Pushbar Finish
• Pushbar Length: 36 inches
• Bar Height: Standard model adjusts from 30″ to 44″
• Life Safety
• Door Height: Standard model fits up to 8 ft door with bar height at 40″- 44″
• Door Thickness: Suits 1-3/4″ standard up to 2-1/4″
• Stile Width: Minimum 2″ stile
• Projection: 2-15/16″ when fully projected, 1-15/16″ when dogged
• Non-handed operation and lever entry trim is field reversible
• Patented top latching mechanism interlocks the door to frame
• Strong and durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install with clean and unobtrusive design
• Standard rod bar
• Grade 1 strength
• Single switch monitoring feature
