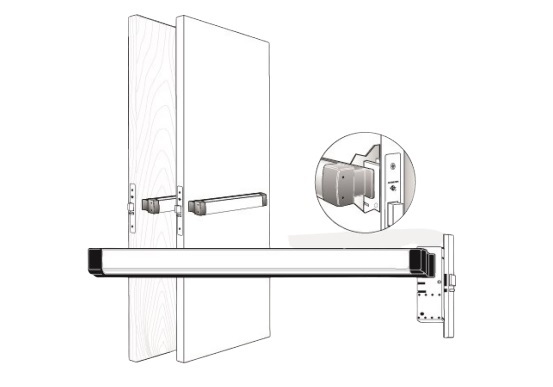

Adams Rite 8310EDM7136 Life-Safety Mortise Exit Device with Single Switch Monitoring, 36″, Clear Anodized

The 8310EDM7136 from Adams Rite is a life-safety mortise exit device with single switch monitoring, 36 inches in Clear Anodized. The 8300 Series Mortise Exit Device is designed for hollow metal and wood applications that require a life-safety exit device with mortise locking solution.

Features

• Clear Anodized Pushbar finish
• Pushbar length: 36 inches
• Electric Dogging
• Life safety
• Stile width: Minimum 5″ stile
• Pushbar made of extruded aluminum, clad or anodized material
• Door thickness: Suits 1-3/4″ standard which can be modified for thicker doors
• Projection: 2-5/8″ when fully projected, 1-5/8″ when dogged
• Handed operation – Right hand reverse door
• Heavy duty deadlatching mechanism
• Strong and durable construction for a high level of security
• Easy to install with clean and unobtrusive design
• Grade 1 strength
• Bevel shaped faceplate
• Standard self-tapping screws fastener
• Standard dogging with hex key
• Single switch monitoring feature
