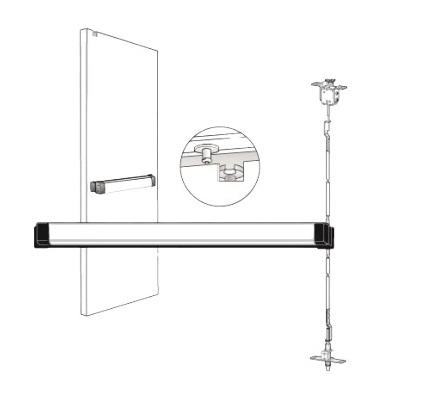

Adams Rite 8522SE30 Life-Safety Concealed Vertical Rod Exit Device without Monitoring Switch for Steel Doors, 30″ in Dark Bronze Anodized

The 8522SE30 from Adams Rite is a life-safety concealed vertical rod exit device without monitoring switch for steel doors, 30 inches in dark bronze anodized finish. The 8522 Series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.

Features

• Dark Bronze Anodized Pushbar Finish
• Pushbar Length: 30 inches
• Life Safety
• Silent Electrification Latch Retraction
• Door Height: Standard unit adjustable for doors up to 66″ above the selected bar height
• Door Thickness: Suits 1-3/4″ standard up to 2-1/4″
• Stile Width: Minimum 3-1/2″ stile
• Projection: 2-5/8″ when fully projected, 1-5/8″ when dogged
• Non-handed operation and lever entry trim is field reversible
• Patented top latching mechanism interlocks the door to frame
• Strong and durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install with clean and unobtrusive design
• Standard rod bar
• Grade 1 strength
• Standard self-tapping screws fastener
• Standard dogging with hex key
• No monitoring switch feature
