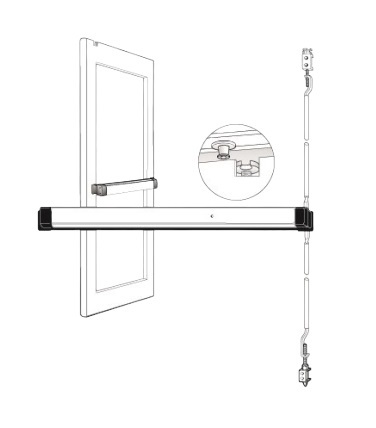

Adams Rite 8600MLRM236-US4MEC Narrow Stile Concealed Vertical Rod Exit Device with Dual Switch Monitor, 36″ in Satin Brass

The 8600MLRM236-US4MEC from Adams Rite is a Narrow Stile Concealed Vertical Rod Exit Device with Dual Switch Monitor, 36″ in Satin Brass. The 8600 series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.

Features

• Satin Brass Pushbar Finish
• Pushbar length: 36 inches
• Silent Electrification Latch Retraction
• Life safety
• Door Height: Standard unit adjustable for doors up to 66″ above the selected bar height
• Door Thickness: Suits 1-3/4″ standard up to 2-1/4″
• Stile Width: Minimum 2″ Stile
• Projection: 2-5/8″ when fully projected, 1-5/8″ when dogged
• Non-handed operation and lever entry trim is field reversible
• Patented top latching mechanism interlocks door to frame
• Strong and durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install with clean and unobtrusive design
• Standard Rod Bar
• Grade 1 strength
• Standard self-tapping screws fastener
• Standard dogging with hex key
• Dual switch monitoring feature
• Matching End Caps
• The MLR Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels and libraries where solenoid-driven devices would be disruptive
