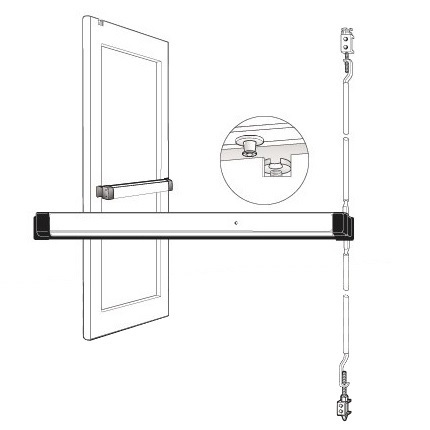

The 8633-48 from Adams Rite is a narrow stile concealed vertical rod exit device, 48 inches in black anodized finish. The 8633 series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.
Adams Rite 8633-48 Exit Device Features
- Finish: Black Anodized Pushbar Finish for a modern and sleek look.
- Length: Pushbar length: 48 inches, ensuring compatibility with various door sizes.
- Safety: Life safety compliant for peace of mind in emergency situations.
- Height Adjustment: Door Height: Standard unit adjustable for doors up to 66″ above the selected bar height, accommodating different installation needs.
- Thickness Suitability: Door Thickness: Fits standard 1-3/4″ up to 2-1/4″ doors, providing versatility.
- Stile Width: Minimum 2″ Stile, designed for narrow stile applications.
- Projection: 2-5/8″ when fully projected, 1-5/8″ when dogged, ensuring smooth operation.
- Operation: Non-handed operation; lever entry trim is field reversible for easy adaptability.
- Security Mechanism: Patented top latching mechanism interlocks the door to frame for enhanced security.
- Durability: Strong and durable construction ensures a high level of security.
- Rod Protection: Adjustable steel rods protected in contoured covers for longevity.
- Installation: Easy to install with clean and unobtrusive design, simplifying the setup process.
- Rod Standard: Standard rod bar included for maximum functionality.
- Strength Grade: Grade 1 strength meets high performance standards.
- Fastener Type: Standard self-tapping screws fastener for secure installation.
- Dogging Feature: Standard dogging with hex key allows for easy operation.
- Monitoring: No monitoring switch feature included for straightforward functionality.
Adams Rite 8633-48 Detailed Specifications
| Model | Adams Rite 8633-48 |
| Type | Narrow Stile Concealed Vertical Rod Exit Device |
| Finish | Black Anodized |
| Length | 48 inches |
| Max Door Height | 66 inches |
| Door Thickness | 1-3/4″ to 2-1/4″ |
| Minimum Stile Width | 2 inches |
| Projection | 2-5/8″ (fully projected), 1-5/8″ (dogged) |
| Operation | Non-handed |
| Security Mechanism | Patented top latching |
| Grade | Grade 1 |
| Installation | Easy with standard self-tapping screws |
| Dogging | Standard with hex key |
| Monitoring Switch | No |
