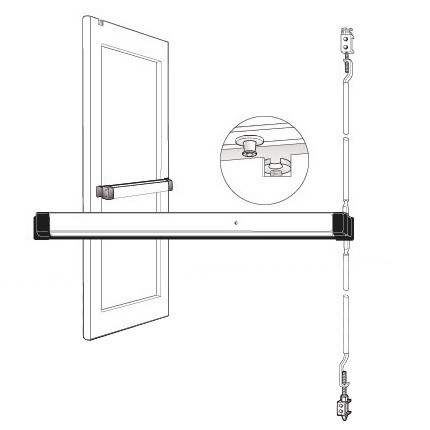

Adams Rite 8633M36 Narrow Stile Concealed Vertical Rod Exit Device with Single Switch Monitor, 36″ in Black Anodized

The 8633M36 from Adams Rite is a narrow stile concealed vertical rod exit device with single switch monitor, 36 inches in black anodized finish. The 8633 series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.

Features

• Black Anodized Pushbar Finish
• Pushbar length: 36 inches
• Life safety
• Door Height: Standard unit adjustable for doors up to 66″ above the selected bar height
• Door Thickness: Suits 1-3/4″ standard up to 2-1/4″
• Stile Width: Minimum 2″ Stile
• Projection: 2-5/8″ when fully projected, 1-5/8″ when dogged
• Non-handed operation and lever entry trim is field reversible
• Patented top latching mechanism interlocks door to frame
• Strong and durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install with clean and unobtrusive design
• Standard Rod Bar
• Grade 1 strength
• Standard self-tapping screws fastener
• Standard dogging with hex key
• Single switch monitoring feature
