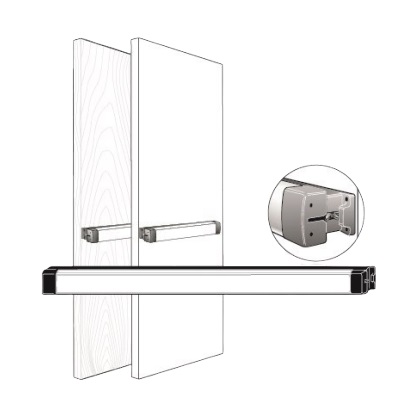

The 8702C36 from Adams Rite is a life-safety rim exit device without monitoring switch, 36 inches in dark bronze anodized finish. The 8702 series Exit Device has patented “Starwheel” bolt interlocks door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design for clean sight lines and is very easy to install.
Features
- Dark Bronze Anodized pushbar finish
- Pushbar length: 36 inches
- Life safety
- Cylinder Dogging
- Pushbar made of extruded aluminum, clad or anodized material
- Door Thickness: Suits 1-3/4″ standard up to 2-1/4″
- Stile Width: Minimum 3-3/4″ Stile
- Projection: 2-5/8″ when fully projected, 1-5/8″ when dogged
- Non-handed operation and lever entry trim is field reversible
- Patented top latching mechanism interlocks the door to frame
- Strong and durable construction for a high level of security
- Easy to install with clean and unobtrusive design for clean sight lines
- Grade 1 strength
- Standard self-tapping screws fastener
- No monitoring switch feature
- Starwheel Bolt:
– When door closes, the interlocking noseguard and starwheel bolt close around the strike, the deadlocking slide springs over and thus locking the starwheel bolt to the strike
– When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading
