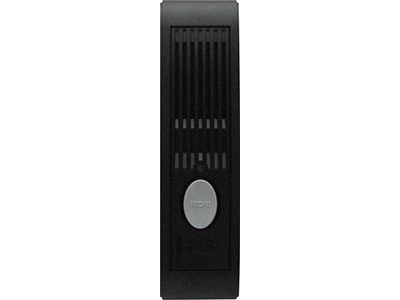

The Aiphone AX-DM Mullion Audio Door Station is designed for seamless integration with the AX series devices, offering a durable ABS plastic construction and easy installation within a 2-inch aluminum door mullion. It features a built-in speaker, microphone, and call button, ensuring clear communication. With added functionalities like a red locator LED, this door station is an affordable and effective solution for secure entry systems.
Aiphone AX-DM Mullion Audio Door Station Features
- Wiring hub: Utilizes CAT-5e cable for reliable connectivity within the AX system.
- System control: Manages all AX system functionalities for efficient operation.
- Master station ports: Includes 4 RJ45 ports for connecting master stations.
- Door/sub station ports: Features 8 RJ45 ports for additional door and sub stations.
- Power supply inputs: Two 24V DC terminals ensure consistent power availability.
- Door release contacts: 8 dry contacts (24V AC/DC 500mA) for facilitating door release.
- Video outputs: Two BNC composite video outputs with video switching triggers for enhanced surveillance.
- Expandable capacity: Supports up to 104 doors with three AX-320C add-on exchanges.
- CO Line transfer: Outputs to Viking K-1900-5 for programmable auto-dialing capabilities.
- Rack-mountable: Designed for easy integration into existing rack systems.
- Programmable software: Customizable functionalities through the included software.
- Comprehensive kit: Comes with USB to serial adaptor, software, Installation & Operation Manual on CD, and QuikStart Guide for user-friendly setup.
Aiphone AX-DM Mullion Audio Door Station Specifications
| Construction Material | ABS Plastic |
| Compatibility | Aiphone AX Series |
| Installation Type | Mullion Mount (2-inch aluminum) |
| Power Supply | 24V DC |
| Master Station Ports | 4 x RJ45 |
| Door/Sub Station Ports | 8 x RJ45 |
| Video Outputs | 2 x BNC Composite |
| Maximum Door Capacity | 104 (with 3 AX-320C) |
| Weight | Lightweight for easy handling |
| LED Indicator | Red Locator LED |
