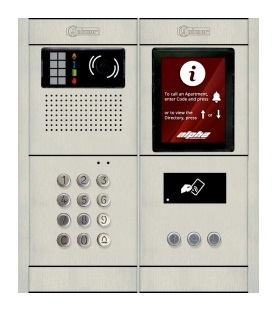

Alpha EPG2-DAF Aluminum Flush Digital Video Door Panel for G2+ System

The EPG2-DAF from Alpha is an Aluminum Flush Digital Video Door Panel for G2+ System. Comes with flush back boxes keypad module and navigation module and camera/speaker/mic. The Alpha Communications EPG2-DAF Door Panel Video Module is used exclusively with the G2+ series systems. The EPG2-DAF is designed using the Nexa series Aluminum door panels and modules. The EPG2-DAF has a 120° wide angle color camera, for a panoramic view, with white LEDs for low light conditions. The module is ADA compliant, with voice prompts and backlit symbols to assist hearing-impaired individuals. Each EPG2-DAF comes with the EL632/G2SE camera/speaker/microphone module, N3002/AL and EL3422/GB2 display module, N3401/GB2 navigation module and N3301/GB2 digital-dial numeric keypad module. Included with the EPG2-DAF is the corresponding panel frame and flush housing(s), as well as a built-in prox. reader.

Features

• BUS-out connection, 2 wires without polarity
• 2 independent relays build-in (i.e. for Door and Gate)
• 12VDC output to connect to the door strike or built-in N/O relay
• Uses simple 2-conductor non-polarized (loop) wiring
• Prox reader module built-in (requires additional components for use)
• Communication volume levels adjustable
• Voice messages for visually-impaired individuals available in 5 different languages
• ADA Visual signals on the front to notify panel status for hearing-impaired individuals
• Wide angle (120°) color camera with white LEDs for night vision
• Camera resolution is 520TVL (640 x 480, 0.3 Mp)
• Automatic Intensity Controlled LED activation in low light conditions
• Weather-resistant when used with the Nexa Aluminum and/or Nexa St. Steel (Inox) panels
