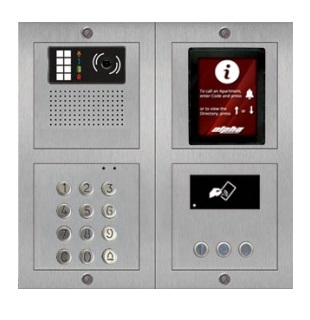

The EPG2-DSF from Alpha is a Door Panel Video Module is used exclusively with the G2+ series systems. The EPG2-DSF is designed using the Nexa series St. Steel door panels and modules. The EPG2-DSF has a 120° wide angle color camera, for a panoramic view, with white LEDs for low light conditions. The module is ADA compliant, with voice prompts and backlit symbols to assist hearing-impaired individuals. Each EPG2-DSF comes with the EL632/G2SE camera/speaker/microphone module, NX3002 and EL3422/GB2 display module, NX3401/GB2 navigation module and NX3301/GB2 digital-dial numeric keypad module. Included with the EPG2-DSF is the corresponding panel frame and flush housing, as well as a built-in prox. reader.
Features
- BUS-out connection, 2 wires without polarity
- 2 independent relays build-in (i.e. for Door and Gate)
- 12VDC output to connect to the door strike or built-in N/O relay
- Uses simple 2-conductor non-polarized (loop) wiring
- Prox reader module built-in (requires additional components for use)
- Communication volume levels adjustable
- Voice messages for visually-impaired individuals available in 5 different languages
- ADA Visual signals on the front to notify panel status for hearing-impaired individuals
- Wide angle (120°) color camera with white LEDs for night vision
- Camera resolution is 520TVL (640 x 480, 0.3 Mp)
- Automatic Intensity Controlled LED activation in low light conditions
- Weather-resistant when used with the Nexa St. Steel (Inox) panels
- Comes with CE620 flush housing
