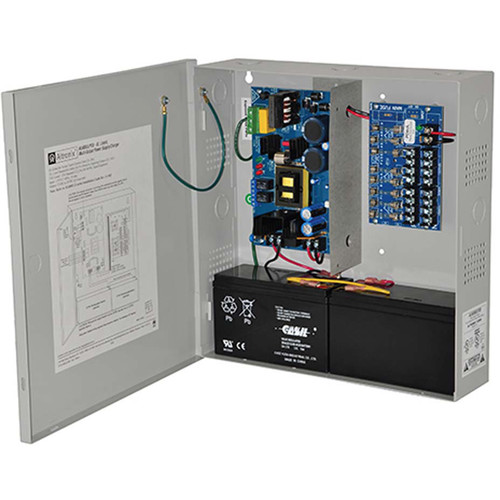

The AL600ULPD8 from Altronix is a Multi-Output Power Supply/Charger that converts a 115VAC/60Hz input into eight Class 2 Rated 12VDC or 24VDC power limited outputs. The AL600ULPD8 has an Automatic switch over to stand-by battery when AC fails (zero voltage drop) and a built-in charger for sealed lead acid or gel type batteries.
Altronix AL600ULPD8 Power Supply Charger Features
- Class 2 Rated: Ensures safe operation with power limited outputs, providing peace of mind in sensitive environments.
- Filtered and Electronically Regulated Output: Delivers stable power to connected devices, enhancing their performance and longevity.
- Short Circuit and Thermal Overload Protection: Protects the system from damage due to overloads, ensuring reliable operation and reducing maintenance costs.
- Low Battery Supervision: Alerts users when battery levels are low, preventing unexpected outages and ensuring continuous operation.
- Battery Presence Supervision: Confirms the presence of the battery, allowing for timely maintenance and minimizing downtime.
- AC Input and DC Output LED Indicators: Provides clear visual status of the power supply system, facilitating easy monitoring and troubleshooting.
Altronix AL600ULPD8 Power Supply Charger Specifications
| Input Voltage | 115VAC |
| Input Frequency | 60Hz |
| Output Voltage | 12/24VDC |
| Output Current | 6A |
| Number of Outputs | 8 Fused Outputs |
| Enclosure Type | BC300 Enclosure |
| Battery Type | Sealed lead acid or gel type batteries |
| Dimensions | Standard size for BC300 enclosure |
