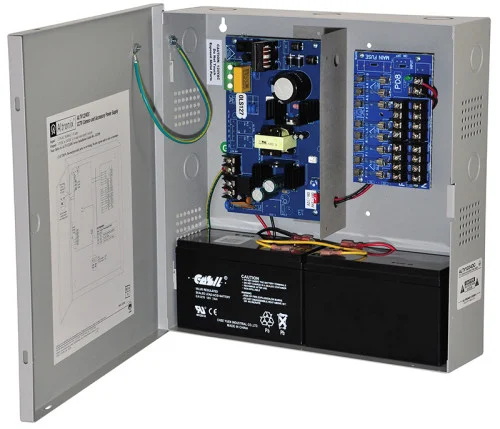

Altronix ALTV1224DCCB CCTV Power Supply, 8 PTC Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure

The ALTV1224DCCB is designed to power CCTV Cameras and accessories. It provides 12VDC or 24VDC distributed via eight (8) PTC protected outputs with a total of 4A total supply current.

Features

Input

• Input 115VAC, 50/60 Hz, 1.45A

Output

• Eight (8) PTC protected outputs (auto-resettable)
• 12VDC or 24VDC field adjustable
• 4A total continuous supply current (0.5A per device, 3.5A max.)
• Outputs are rated @ 3.5A
• Filtered and electronically regulated outputs

Electrical Temperature

• Operating: 0° C to 49° C (32° F to 120° F)
• Storage: – 20° C to 70° C ( – 4° F to 158° F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.):
  – 12VDC: 25 BTU/Hr
  – 24VDC: 49 BTU/Hr
• System AC input VA requirement: 166.75VA

Features

• AC input and DC output LED indicators
• Power ON/OFF switch
• Ease of installation saves time and eliminates costly labor
