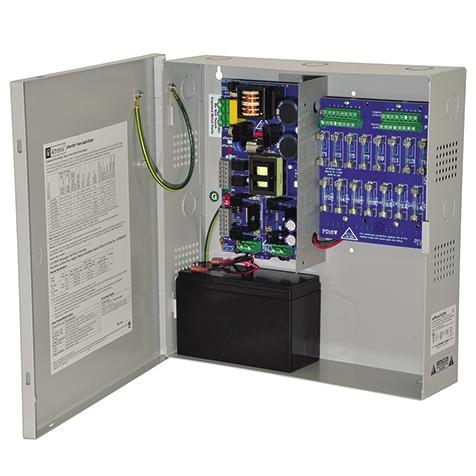

Altronix EFLOW102N16 16 Fused Outputs Power Supply Charger, 12VDC @ 10A, 115VAC, BC300 Enclosure

The Altronix EFLOW102N16 is a robust power supply charger designed to convert a 120VAC 60Hz input into sixteen (16) fuse-protected 12VDC outputs, with a maximum supply current of 10 amps. This reliable unit features an unswitched auxiliary output and essential safety measures, including fire alarm disconnect, over-voltage protection, and low power disconnect, ensuring optimal performance and protection for your devices.

Altronix EFLOW102N16 Key Features

• Sixteen (16) fuse protected outputs: Provides multiple outputs for various applications, enhancing versatility and reliability.
• Outputs are rated @ 2.5 amp: Ensures each output can handle significant load, suitable for diverse devices.
• 12VDC @ 10.0 amp supply current: Delivers consistent power to connected devices, promoting efficient operation.
• Auxiliary Power-Limited output rated @ 1 amp (unswitched): Offers additional power options without interruption, ideal for supplementary devices.
• Over Voltage Protection: Safeguards connected equipment from voltage spikes, enhancing longevity and safety.
• Built-in charger for sealed lead acid or gel type batteries: Convenient charging solution for backup batteries, ensuring readiness during power failures.
• Maximum charge current 1.54 amp: Efficient charging capability that supports rapid battery replenishment.
• Automatic switch over to stand-by battery when AC fails: Guarantees uninterrupted power supply during outages, ensuring critical devices remain operational.
• AC fail supervision (form “C” contacts): Provides alerts for AC power loss, enhancing system monitoring and response.
• Battery fail & presence supervision (form “C” contacts): Monitors battery status to prevent unexpected power loss.
• Low power shutdown: Prevents deep battery discharge, prolonging battery life by shutting down output when voltage is critically low.
• Supervised Fire Alarm disconnect: Integrates with fire alarm systems for safety, offering both latching and non-latching options.
• Green AC Power LED: Allows users to quickly verify AC power presence, improving usability.
• AC input, DC output and Battery LED indicators: Provides visual status of the power supply, enhancing monitoring capabilities.
• Short circuit and overload protection: Ensures safe operation by preventing damage to the unit and connected devices.
• Complete package: Comes with power supply, enclosure, battery leads, and cam lock for added convenience.
