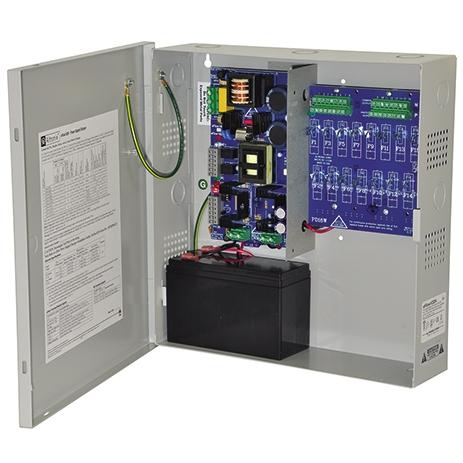

Altronix EFLOW102N16D 16 PTC Class 2 Outputs Power Supply Charger, 12VDC @ 10A, 115VAC, BC300 Enclosure

Altronix eFlow102N16D is a high-performance power supply/charger designed to convert a 120VAC 60Hz input into sixteen (16) PTC protected power-limited 12VDC outputs, delivering a maximum of 10 amps total. This reliable unit features an unswitched auxiliary output and a range of protection mechanisms including over voltage protection and low power disconnect, ensuring safe operation and longevity of connected devices.

Altronix EFLOW102N16D Key Features

• Sixteen (16) Class 2 Rated Outputs: Provides multiple outputs to power various devices, enhancing flexibility and efficiency.
• 2 Amp Rated Outputs: Each output is capable of handling 2 amps, allowing for substantial power distribution.
• 12VDC @ 10.0 Amp Supply Current: Delivers robust current, making it suitable for demanding applications.
• Auxiliary Power-Limited Output: Unswitched output rated at 1 amp for additional devices, adding versatility to power management.
• Over Voltage Protection: Safeguards connected devices against voltage spikes, ensuring longevity and reliability.
• Built-in Charger: Designed for sealed lead acid or gel type batteries, ensuring efficient charging and maintenance.
• Maximum Charge Current: 1.54 amp charge current optimizes battery performance and life.
• Instantaneous Battery Switch Over: Seamless transition to stand-by battery power during AC failure, preventing downtime.
• AC Fail Supervision: Monitors AC power with form “C” contacts, ensuring reliable operation and alerts.
• Battery Supervision: Detects battery fail and presence with form “C” contacts, enhancing system reliability.
• Low Power Shutdown: Protects batteries from deep discharge by shutting down outputs at critical voltage levels.
• Supervised Fire Alarm Disconnect: Integrates fire alarm monitoring with adjustable trigger options, ensuring safety compliance.
• Green AC Power LED: Visual indicator for AC power presence, simplifying monitoring and maintenance.
• Comprehensive LED Indicators: Display status of AC input, DC output, and battery conditions for easy troubleshooting.
• Short Circuit and Overload Protection: Prevents damage to the unit and connected devices, ensuring safe operation.
• Complete Package: Comes with power supply, enclosure, battery leads, and cam lock for convenience and security.

Detailed Specifications for Altronix EFLOW102N16D
