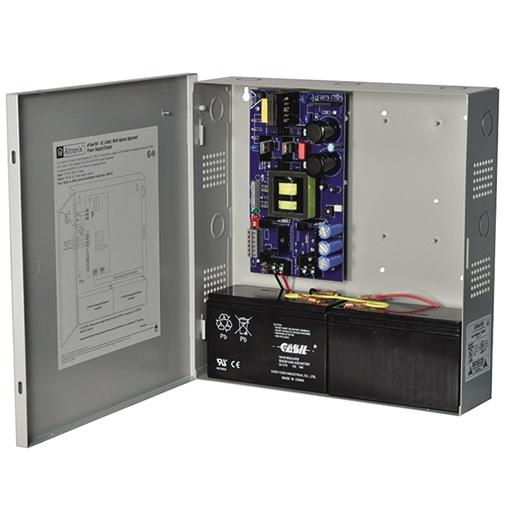

The Altronix EFLOW104N is a robust power supply/charger designed for reliable performance, converting 120VAC input into a steady 24VDC output at 10 amps maximum. Ideal for various applications, this unit features an auxiliary output, fire alarm disconnect, and multiple protective measures to ensure the longevity and safety of connected devices.
Altronix EFLOW104N Key Features
- Input Voltage: 120VAC, 60Hz, 4.5 amp – Ensures compatibility with standard electrical systems.
- Output Current: 24VDC @ 10.0 amp – Provides sufficient power for demanding applications.
- Auxiliary Output: Power-Limited output rated @ 1 amp (unswitched) – Offers additional power for auxiliary devices.
- Over Voltage Protection: Prevents damage due to voltage spikes – Enhances device longevity and reliability.
- Built-in Charger: Compatible with sealed lead acid or gel type batteries – Supports various battery types for flexibility.
- Maximum Charge Current: 1.54 amp – Efficient charging capabilities for connected batteries.
- Automatic Switch Over: Instantaneous transfer to stand-by battery when AC fails – Ensures continuous operation without interruptions.
- AC Fail Supervision: Form “C” contacts for monitoring – Provides alerts for power loss, enhancing system reliability.
- Battery Supervision: Monitors battery fail & presence with form “C” contacts – Ensures battery health and availability.
- Low Power Shutdown: Protects batteries by shutting down DC output below 70-75% – Prevents deep discharge and extends battery life.
- Fire Alarm Disconnect: Supervised with 10K EOL resistor – Offers safety features for emergency scenarios.
- LED Indicators: Green AC Power LED indicates 120VAC presence – Provides visual verification of operational status.
- Protection Features: Short circuit and overload protection – Safeguards against electrical faults.
- Complete Unit: Includes power supply, enclosure, battery leads, and cam lock – Ready for installation and use out of the box.
Altronix EFLOW104N Specifications
| Input Voltage | 120VAC, 60Hz |
| Input Current | 4.5 amp |
| Output Voltage | 24VDC |
| Output Current | 10.0 amp |
| Auxiliary Output | 1 amp (unswitched) |
| Charge Current | 1.54 amp |
| Fire Alarm Disconnect | Supervised, 10K EOL resistor |
| Low Power Shutdown | 75% battery voltage |
| AC Fail Supervision | Form “C” contacts |
| Battery Supervision | Form “C” contacts |
| Protection Features | Short circuit, overload protection |
| Includes | Power supply, enclosure, battery leads, cam lock |
