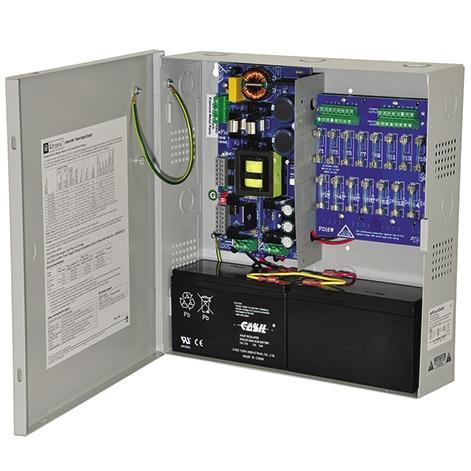

Altronix EFLOW104N16 16 Fused Outputs Power Supply Charger, 24VDC @ 10A, 115VAC, BC300 Enclosure

eFlow104N16 is a power supply/charger that converts a 120VAC 60Hz input into sixteen fuse protected 24VDC outputs with a total of 10 amps max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Altronix EFLOW104N16 Power Supply Features

• Input Voltage: 120VAC, 60Hz, 4.5 amp – Ensures compatibility with standard electrical systems.
• Outputs: Sixteen (16) fuse protected outputs – Provides multiple outputs for various devices while ensuring protection.
• Output Rating: Outputs are rated @ 2.5 amp – Allows for safe operation of connected devices.
• Supply Current: 24VDC @ 10.0 amp supply current – Delivers adequate power for demanding applications.
• Auxiliary Output: Power-Limited output rated @ 1 amp (unswitched) – Offers additional power supply options.
• Over Voltage Protection: Protects connected devices from damaging voltage spikes.
• Built-in Charger: For sealed lead acid or gel type batteries – Ensures optimal battery maintenance and longevity.
• Maximum Charge Current: 1.54 amp – Facilitates efficient battery charging.
• Automatic Switch Over: Instantaneous transfer to stand-by battery power when AC fails – Guarantees uninterrupted operation during power outages.
• AC Fail Supervision: Form “C” contacts – Provides alerts for AC power loss.
• Battery Supervision: Battery fail & presence supervision (form “C” contacts) – Monitors battery health for reliability.
• Low Power Shutdown: Prevents deep battery discharge by shutting down DC outputs below 70-75% voltage – Protects battery life.
• Fire Alarm Disconnect: Supervised Fire Alarm disconnect (latching or non-latching) with 10K EOL resistor – Integrates safety features for fire alarm systems.
• AC Power Indicator: Green LED indicates 120VAC present – Provides visual confirmation of AC power.
• LED Indicators: AC input, DC output, and Battery LED indicators – Simplifies monitoring of system status.
• Protection Features: Short circuit and overload protection – Enhances safety for all connected devices.
• Complete Unit: Includes power supply, enclosure, battery leads, and cam lock – Ready for installation right out of the box.
