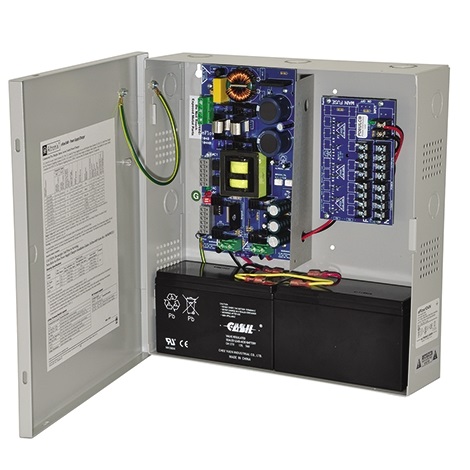

Altronix EFLOW104N8D 8 PTC Class 2 Outputs Power Supply Charger, 24VDC @ 10A, 115VAC, BC300 Enclosure

eFlow104N8D is a power supply/charger that converts a 120VAC 60Hz input into eight (8) PTC protected power-limited 24VDC outputs with a total of 10 amps max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Altronix EFLOW104N8D Key Features

• Input Voltage: 120VAC, 60Hz, 4.5 amp – Ensures compatibility with standard electrical systems.
• Output Configuration: Eight (8) Class 2 Rated PTC protected power-limited outputs – Provides multiple connections for various devices while maintaining safety standards.
• Output Rating: Outputs are rated @ 2 amp – Each output is powerful enough for demanding applications.
• Supply Current: 24VDC @ 10.0 amp – Delivers reliable power for continuous operation.
• Auxiliary Output: Auxiliary Power-Limited output rated @ 1 amp (unswitched) – Offers additional power support for auxiliary devices.
• Over Voltage Protection: Protects connected devices from voltage spikes – Enhances the safety and longevity of your equipment.
• Built-in Charger: For sealed lead acid or gel type batteries – Keeps backup batteries charged and ready for use.
• Maximum Charge Current: 1.54 amp – Efficiently charges batteries without overloading.
• Automatic Switch Over: Instantaneous transfer to stand-by battery when AC fails – Ensures uninterrupted power supply during outages.
• AC Fail Supervision: (form “C” contacts) – Monitors system health and alerts users to power issues.
• Battery Supervision: Battery fail & presence supervision (form “C” contacts) – Provides critical information about battery status.
• Low Power Shutdown: Prevents deep battery discharge by shutting down if voltage drops below 70-75% – Extends battery life and reliability.
• Supervised Fire Alarm Disconnect: (latching or non-latching) 10K EOL resistor – Ensures safety in fire alarm systems by disconnecting power as needed.
• LED Indicators: Green AC Power LED indicates 120VAC present – Offers visual confirmation of operational status.
• Protection Features: Short circuit and overload protection – Safeguards the unit and connected devices from damage.
• Complete Package: Unit includes power supply, enclosure, battery leads, and cam lock – Everything needed for installation is included.
