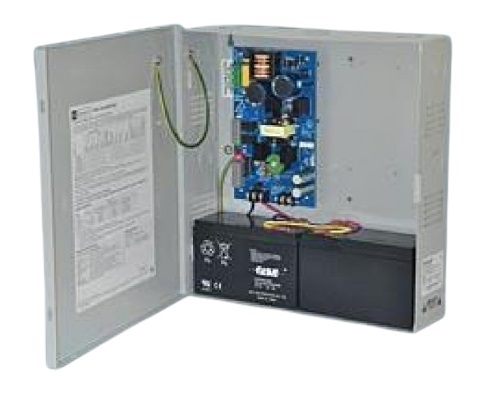

Altronix EFLOW6N Single Output Power Supply Charger, 12/24VDC @ 6A, BC300 Enclosure

The Altronix EFLOW6N Single Output Power Supply Charger is a versatile and efficient power solution that converts a 120VAC input into a selectable 12VDC or 24VDC output with a maximum current of 6 amps. This unit is designed with essential features such as fire alarm disconnect, over voltage protection, and low power disconnect, ensuring reliable performance and safeguarding your standby batteries from deep discharge.

Altronix EFLOW6N Power Supply Features

• Input Voltage: 120VAC, 60Hz, 3.5 amp input for universal compatibility.
• Input Fuse: 5A/250V fuse for added safety and protection against overload.
• Output Voltage: Selectable 12VDC or 24VDC @ 6.0 amp supply current for flexible application.
• Auxiliary Output: Power-Limited output rated @ 1 amp (unswitched) for additional power needs.
• Over Voltage Protection: Protects connected devices from voltage spikes.
• Built-in Charger: Supports sealed lead acid or gel type batteries for efficient battery management.
• Charge Current: Maximum charge current of 1.54 amp for quick battery charging.
• Automatic Switch Over: Instantaneous transfer to stand-by battery power during AC failure for uninterrupted operation.
• AC Fail Supervision: Form “C” contacts for monitoring AC supply status.
• Battery Supervision: Battery fail & presence supervision with form “C” contacts for reliable monitoring.
• Fire Alarm Disconnect: Supervised disconnect with options for latching or non-latching operation.
• LED Indicators: Green AC Power LED and other indicators for easy status monitoring.
• Short Circuit Protection: Safeguards the unit from damage due to short circuits.
• Complete Package: Comes with power supply, enclosure, battery leads, and cam lock for easy installation.

Altronix EFLOW6N Detailed Specifications
