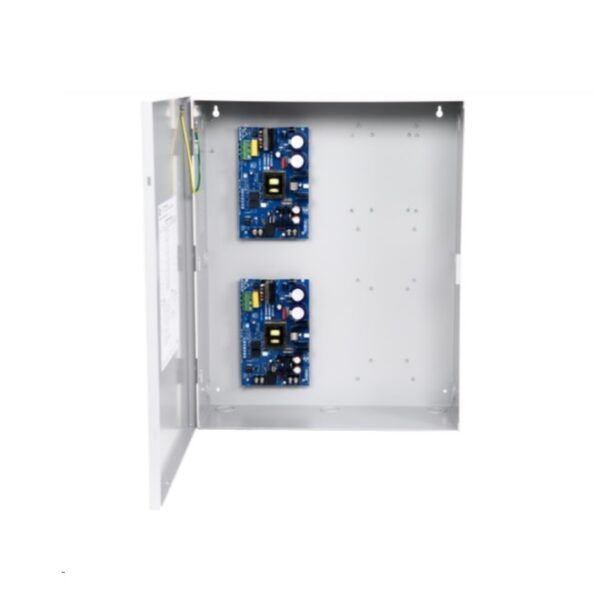

Altronix MAXFIT55E Dual Power Supply Expandable Power Systems

Altronix MaxFit55E Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC and 12VDC simultaneously via two (2) single output power supply/chargers. Suit of features includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.

Features

Input

• Voltage: 115VAC 60Hz, 5.2
• Fusing: 5A/250V

Output

• 12VDC and/or 12VDC outputs

Maximum output current Options:

• A) 12VDC @ 10A
• B) 12VDC @ 10A

Back-up Battery (not included)

• Capacity: 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure)
• Type: Sealed lead acid or gel type
• Fuse Rating: 15A/32V
• Failover: Upon AC loss, instantaneous

Supervision

• AC Failure: Form “C” contacts
• Battery: Form “C” contacts

Indicators (LED)

• Input: 115VAC is present
• DC Output: Powered
• Battery: Discharged or not connected

Temperature

• Operating: 0ºC to 49ºC (32ºF to 120ºF)
• Storage: – 20ºC to 70ºC ( – 4ºF to 158ºF)
• Relative Humidity: 85% +/- 5%

BTU/Hr. (approx.):

• 12VDC: 123 BTU/Hr
