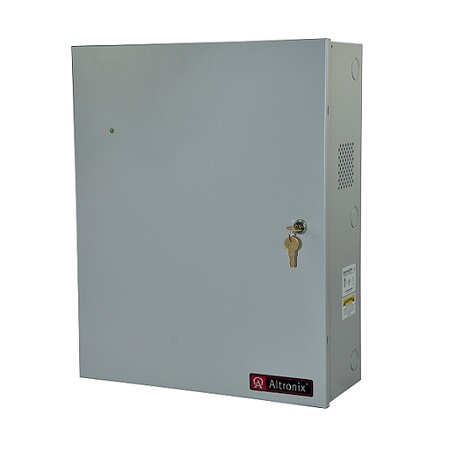

Altronix eFlow102N is a power supply/charger that converts a 120VAC 60Hz input into a single 12VDC output with a total of 10A max. The unit includes a unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Altronix PD16WCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into sixteen (16) PTC protected Class 2 Rated power-limited outputs. Altronix BC750 is a power supply/battery enclosure that can accommodate a wide variety of Altronix power supplies, sub-assemblies, and accessories. Altronix enclosures feature ample knockouts that are suitable for 3/4” and 1” conduits.
Features
eFlow102N Features
- 120VAC, 60Hz, 3.5A
- Input fuse: 5A/250V
- 12VDC @ 10.0A supply current
- Auxiliary Power-Limited output rated @ 1A (unswitched)
- Over Voltage Protection
- Short circuit and overload protection
- Unit is complete with power supply, enclosure, battery leads and cam lock
PD16WCB Features
- 12VDC or 24VDC up to 10A or 24VAC or 28VAC, up to 12A
- Sixteen (16) PTC protected Class 2 Rated power-limited outputs (auto-resettable)
- 2A per output max
- Total output current should not exceed max current rating of power supply employed
- PTCs are rated @ 2A/250V
- Power LED indicator
BC750 Features
- 19 Gauge steel enclosure
- Ample knockouts accommodating either 3/4” or 1” conduits for convenient access
- Cam lock and keys are included
