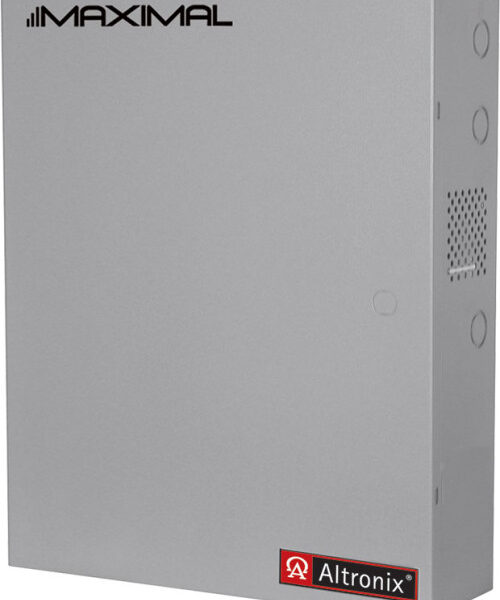

Altronix MAXIMAL13EV Power Supply/Charger, Expandable, Dual 12/24VDC outputs, 1 P/S @ 3.5A & 1 P/S @ 6A, 220VAC, BC800 Enclosure

Altronix Maximal13EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable UL Listed sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.

Features

Input

• 220VAC (working range 198VAC – 256VAC), 50/60Hz, 2.5A input

Output

• 12VDC and/or 24VDC outputs
• Maximum output current Options:
• A) 12VDC @ 4A plus 12VDC @ 6A
• B) 24VDC @ 3A plus 24VDC @ 6A
• C) 12VDC @ 4A plus 24VDC @ 6A
• D) 24VDC @ 3A plus 12VDC @ 6A
• Filtered and electronically regulated outputs (built-in power supply)
• Thermal and short circuit protection with auto reset

Fuse Ratings

Supervision

• AC fail supervision (form “C” contacts)
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours
• Low battery and battery presence supervision (form “C” contact)

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails
• Zero voltage drop when unit switches over to battery backup (AC failure condition)

Visual Indicators

• AC input and DC output LED indicators

Electrical

• Temperature:
• Operating: 0° C to 49° C (32° F to 120° F)
• Storage: – 20° C to 70° C ( – 4° F to 158° F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.):
• A) 12VDC: 45 BTU/Hr
• B) 24VDC: 82 BTU/Hr
• C) 12VDC & 24VDC: 45 BTU/Hr
• D) 24VDC & 12VDC: 82 BTU/Hr
• System AC input VA requirement: 550VA
