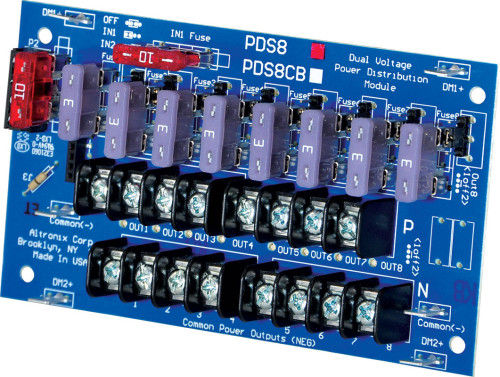

Altronix PDS8 Dual Input Power Distribution Module

The PDS8 from Altronix is a dual input power distribution module designed to efficiently manage power from two low voltage AC or DC sources, distributing it across eight fused protected outputs. With robust surge suppression and user-friendly features, this module ensures reliable performance for your power distribution needs.

Altronix PDS8 Dual Input Power Distribution Features

• Input Voltage Range: 5VDC to 24VDC up to 10A each or 16VAC to 28VAC up to 14A each, allowing flexibility with different power sources.
• Output Selection: Any of the eight fuse protected outputs can be selected to follow either input, enhancing versatility in power management.
• Serviceable Outputs: Individual outputs can be set to OFF position for servicing, ensuring safety and convenience during maintenance.
• Fuse Protection: PDS8 features fuse protected outputs rated at 3A, safeguarding your devices from overload.
• Surge Suppression: Built-in surge suppression protects connected devices from voltage spikes.
• Output Fuse Rating: Each output fuse is rated at 3A, providing reliable protection for each connected device.
• Main Input Fuse Rating: Main input fuses are rated at 10A each, accommodating higher input current for enhanced stability.
• Output LEDs: Eight individual output LEDs indicate the operational status, making monitoring easy and efficient.

Altronix PDS8 Dual Input Power Distribution Specifications
