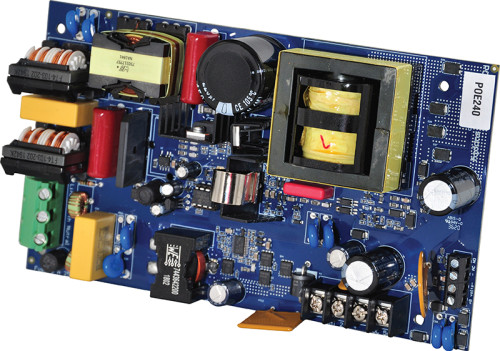

Altronix POE240 56VDC/240W Power Supply/Charger Board

Altronix PoE240 provides 240W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50/60Hz input into a 56VDC at 4.5A of continuous supply current (see specifications). It also features a built-in charger for LiFePO4 (Lithium Iron Phosphate), sealed lead acid or gel type batteries.

Features

• 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A


• 56VDC/240W output


• 4.25A continuous supply current


• Filtered and electronically regulated output


• Short circuit and thermal overload protection


• Built-in charger for LiFePO4 (Lithium Iron Phosphate), sealed lead acid or gel type batteries


• Battery charging circuit: 24VDC, 300mA


• Automatic switch over to stand-by battery when AC fails


• Includes battery leads


• 240W: – 30ºC to 55ºC (– 22ºF to 131F)


• 180W: – 30ºC to 65ºC (– 22ºF to 149ºF)


• 150W: – 30ºC to 75ºC (– 22ºF to 167ºF)


• Storage Temperature: – 30ºC to 85ºC (– 22ºF to 185ºF)


• Relative Humidity: 85% +/–5%


• BTU/Hr (approx.): 61 BTU/Hr
