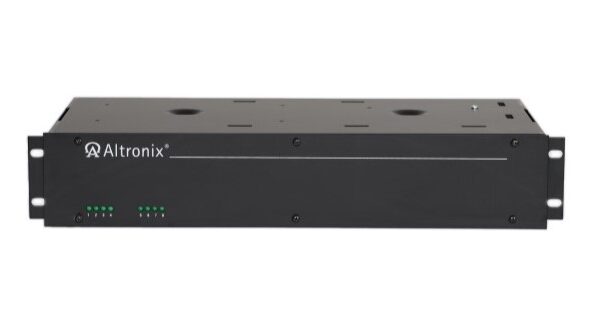

Altronix R1224DC68220 CCTV DC Power Supply/Charger, 8 Fuse Protected Outputs, 12VDC or 24VDC @ 6A

The Altronix R1224DC68220 Rack Mount Power Supply provides 12VDC or 24VDC @ 6A via eight (8) fuse protected outputs for powering CCTV cameras, heaters, and other video accessories.

Features

Input

• 220VAC, 50/60Hz, 0.9A

Output

• Eight (8) fuse protected outputs
• 12VDC or 24VDC @ 6A (0.75A per device, 3.5A max.)
• Outputs are rated @ 3.5A
• Surge suppression

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails
• Maximum charge current 0.7A

Visual Indicators

• Eight (8) power LEDs

Temperature

• Operating temperature: 0° C to 49° C ( 32° F to 120° F)
• Storage temperature: -20° C to 70° C ( -4° F to 158° F )
• BTU/Hr. (approx.):
  – 12VDC – 37 BTU/Hr
  – 24VDC – 75 BTU/Hr
• Relative Humidity: 85% +/-5%

Special Features

• Illuminated master power disconnect circuit breaker with manual reset
• 3-wire grounded line cord
• Removable terminal blocks with locking screw flange
• Unit maintains camera synchronization
• Spare fuses provided
