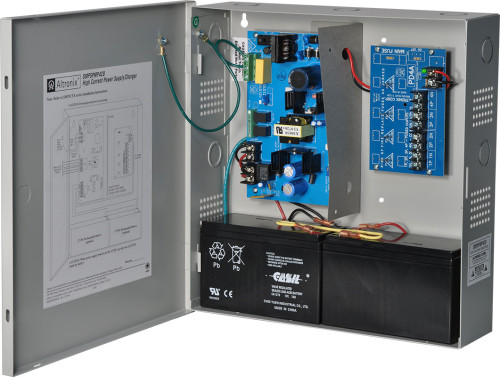

Altronix SMP5PMP4CB Power Supply Charger, 4 PTC Outputs, 12/24VDC @ 4A, 115/220VAC, Supervision, BC300 Enclosure

Altronix SMP5PMP4CB is a multi-output power supply/charger that converts a 115VAC/230VAC, 50/60Hz input into four (4) 12VDC or 24VDC outputs.

Features

Input

• Input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.5A

Output

• 12VDC or 24VDC selectable output
• 4A supply current
• Four (4) PTC protected outputs (auto-resettable)
• Outputs are rated @ 2.5A
• Filtered and electronically regulated outputs
• Short circuit and thermal overload protection

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries
• Zero voltage drop when switching over to battery backup

Supervision

• AC fail supervision (form “C” contacts)
• Low battery supervision (form “C” contacts)

Visual Indicators

• AC input and DC output LED indicators

Temperature

• Operating: 0° C to 49° C (32° F to 120° F)
• Storage: – 20° C to 70° C ( – 4° F to 158° F)
• Relative Humidity 85% +/- 5%

BTU/Hr. (approx.):

• 12VDC: 25 BTU/Hr
• 24VDC: 49 BTU/Hr

System AC input VA requirement:

• 115VAC: 109.25VA
• 230VAC: 115VA
