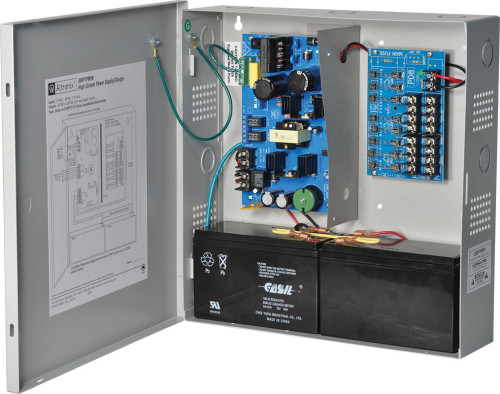

Altronix SMP7PMP8 Power Supply Charger, 8 Fused Outputs, 12/24VDC @ 6A, 115VAC, Supervision, BC300 Enclosure

Altronix SMP7PMP8 is a multi-output power supply/charger that converts a 115VAC/60Hz input into eight (8) Fused 12VDC or 24VDC outputs.

Features

Input

• Input 115VAC, 60Hz, 2.5A

Output

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries
• Zero voltage drop when switching over to battery backup

Supervision

• AC fail supervision (form “C” contacts)
• Battery presence and low battery supervision (form “C” contacts)

Visual Indicators

• AC input and DC output LED indicators

Temperature

• Operating: 0° C to 49° C (32° F to 120° F)
• Storage: – 20° C to 70° C ( – 4° F to 158° F)
• Relative Humidity 85% +/- 5%

BTU/Hr (approx.):

• 12VDC: 37 BTU/Hr
• 24VDC: 74 BTU/Hr
• System AC input VA requirement: 287.5VA
