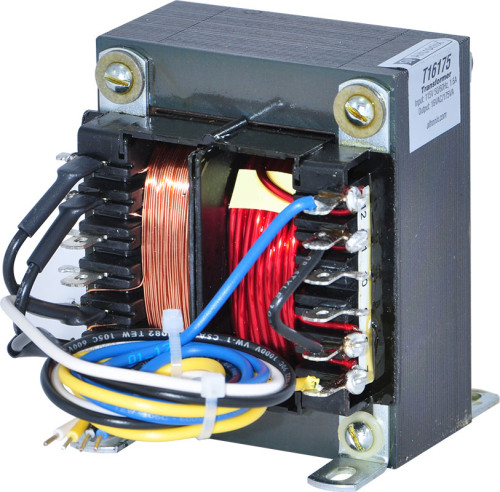

Altronix T16175 Open Frame Transformer, 16VAC @ 175VA, 115VAC

The Altronix T16175 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Features

Input

• 115VAC 50/60 Hz, 1.6A

Output

• 16VAC/175VA (11A) supply current

Temperature

• Operating 0° C to 49° C (32° F to 120° F)
• Storage – 20° C to 70° C ( – 4° F to 158° F)
• Relative Humidity 85% +/- 5%
• BTU/Hr. (approx.): 90 BTU/Hr
• System AC input VA requirement: 184VA
