Altronix T1MK14 4-Door Altronix/Mercury Access and Power Integration Kit – Trove1M1 with AL400ULXB2, ACM4, VR6

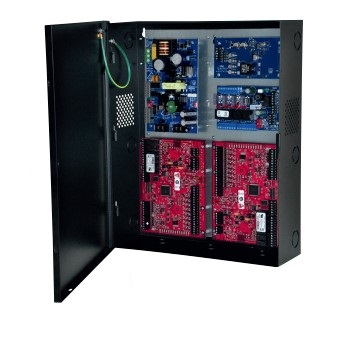

Altronix T1MK14 kit consists of Trove1 enclosure and TM1 Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger, 12VDC voltage regulator and four (4) fuse protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt.

Features

AL400ULXB2 Power Supply/Charger

• Input
• Voltage: 115VAC, 60Hz, 3.5A max
• Fusing: 5A / 250V
• Output
• Voltage: 12VDC or 24VDC selectable
• Current: 4A @ 12VDC or 3A @ 24VDC continuous max
• Other: Overvoltage protection. Filtered and regulated

Battery Backup

• Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure)
• Type: Sealed lead acid or gel type
• Fuse Rating: 15A/32V
• Failover: Upon AC loss, instantaneous

Supervision

• AC Failure: Form “C” contacts
• Battery: Form “C” contacts

Indicators LED

• Input: 115VAC is present
• DC Output: Powered
• Battery: Discharged or not connected

VR6 Voltage Regulator

• Input
• Voltage: 24VDC from AL400ULXB2
• Output
• Voltage: 12VDC
• Current: 6A continuous
• Other: Surge suppression
• Indicators (LED)
• Input: 24VDC is present
• Output: Powered

ACM4 Access Power Controller

• Input
• Voltage: 24VDC from AL400ULXB2
• Input Fuse: 10A / 32V
• Output
• Voltage: 24VDC
• Four (4) independently controlled 2.5A outputs:
  a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
  b) Four (4) dry form “C” 5A rated relay outputs.
  c) Any combination of the above
• Four (4) auxiliary power outputs (unswitched).
• Outputs Ratings
• Fuses: 3A / 32VDC
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized)
• Green LED: FACP disconnect is triggered

Environmental

• Temperature
• Operating: 0° C to 49° C (32° F to 120° F)
• Storage: – 20° C to 70° C ( – 4° F to 158° F)
• Relative Humidity
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.):
• 90 BTU/Hr
