Altronix T2KHK312 12-Door Altronix/Kantech Access and Power Integration Kit – Trove2KH2 with AL600ULXB, T1618300K, ACM4, ACM8

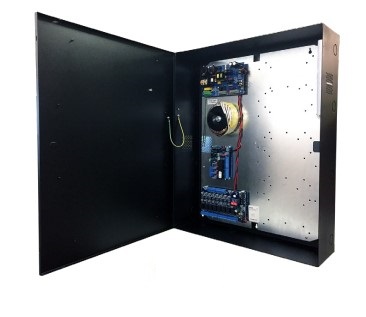

Altronix T2KHK312 kit consists of Trove2 enclosure, TKH2 Kantech/Altronix backplane with one (1) 12VDC or 24VDC @ 6A power supply/charger, one (1) eight (8) output fused access power controller, one (1) four (4) output fused access power controller and one (1) 16VAC/18VAC transformer.

This kit also accommodate various combinations of Kantech boards for up to twelve (12) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Features

AL600ULXB Power Supply/Charger

• Input
• Voltage: 115VAC, 60Hz, 3.5A max
• Fusing: 5A / 250V
• Outputs
• Voltage: 12VDC or 24VDC selectable
• Current: 6A @ 12VDC or 24VDC continuous max
• Filtered and regulated
• Battery Backup (not included)
• Capacity: 7AH / 12VDC (up to 4 within enclosure); 12AH / 12VDC (up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure)
• Type: Sealed lead acid or gel type
• Failover: Upon AC loss, instantaneous
• Supervision
• AC Failure: Form “C” contacts
• Battery: Form “C” contacts
• Indicators LED
• Input: 115VAC is present
• DC Output: Powered
• Battery: Discharged or not connected

ACM4 Access Power Controller

• Input
• Voltage: 24VDC from AL600ULXB
• Main Fuse: 10A / 32V
• Outputs
• Voltage: 24VDC
• Four (4) independently controlled 2.5A outputs:
  a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
  b) Four (4) dry form “C” 5A rated relay outputs.
  c) Any combination of the above
• Four (4) auxiliary power outputs (unswitched)
• Output Rating: 3A / 32VDC
• Indicators (LED’s)
• Red LEDs: Outputs are triggered (relays energized)
• Green LED: FACP disconnect is triggered

ACM8 Access Power Controller

• Input
• Voltage: 24VDC from AL600ULXB
• Input Fuse: 10A / 250V
• Outputs
• Voltage: 24VDC
• Eight (8) independently controlled fused outputs:
  a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
  b) Auxiliary power outputs (unswitched).
  c) Any combination of the above
• Output Fuses: 3.5A / 250V
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized)
• Green LED: FACP disconnect is triggered

T1618300K Transformer

• Input
• Voltage: 115VAC, 50/60Hz, 2.7A
• Output
• Voltage: 16VAC/300VA (18.7A) or 18VAC/300VA (16.7A)

Environmental

• Temperature
• Operating: 0° C to 50° C (32° F to 122° F)
• Storage: – 20° C to 70° C ( – 4° F to 158° F)
• Relative Humidity
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.):
• 232 BTU/Hr
