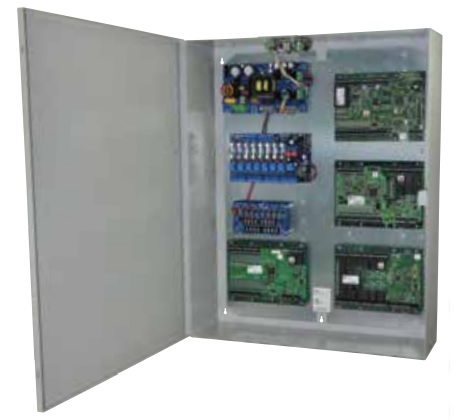

Altronix T2MK77F16 Access and Power Integration, Kit Includes Trove2 Enclosure with TM2 Backplane and TMV2 Door Backplane

The T2MK77F16 from Altronix is a pre-assembled and consist of Trove2M2 enclosure with factory installed Altronix power supply/charger(s) and sub-assemblies. This kit also accommodate various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure.

Features

Input

• 120VAC 60Hz/9A

Output

• 24VDC up to 9.2A max current
• Sixteen (16) Fail-Safe/Fail-Secure or Dry Form “C” Outputs

Back-up Battery (not included)

• Capacity: 12AH / 12VDC (Up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure)
• Type – Sealed lead acid or gel type
• Fuse Rating: 15A/32V
• Failover – Upon AC loss, instantaneous

Supervision

• AC Failure – Form “C” contacts
• Battery – Form “C” contacts
• Low DC Power Shutdown – Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply), Prevents deep battery discharge

LED Indicators

• Input – 120VAC is present
• DC Output – Powered
• Battery – Discharged or not connected
