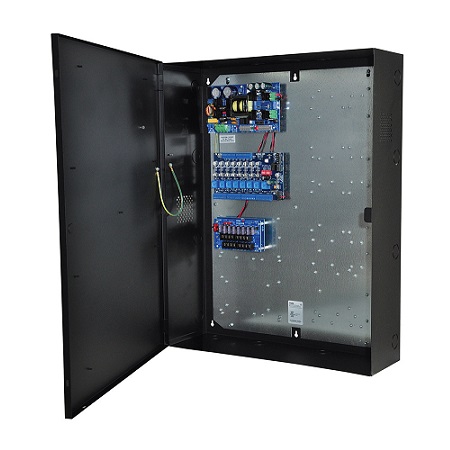

Altronix T2MK7F8EN 8-Door Access and Power Integration Kit – Trove2 with eFlow104NB, PDS8, ACM8 for Envision

Altronix T2MK7F8 kit consists of Trove2 enclosure and TM2 Mercury/Altronix backplane with 24VDC @ 10A power supply/charger, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module and eight (8) fuse protected output access control module. This kit also accommodates various combinations of Mercury/Lenel* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Features

• Accommodates the following Mercury controllers: EP1502, LP1502, MR52, MR16IN, MR16OUT, EP1501, LP1501, MR51e, MR62e, MR50, EP2500, LP2500, MUX8
• Convenient knockout configuration: Single 2” diameter knockout located top center of enclosure, Sixteen (16) double knockouts (1” and 0.75”)
• 16 AWG galvanized steel backplane simplifies board layout and wire management
• Filtered and electronically regulated outputs
• Thermal and short circuit protection with auto reset
• AC input and DC output LED indicators
• Supervision: AC Fail, Low Battery and Battery Presence, Low power shutdown
• Built-in charger for sealed lead acid or gel type batteries
• Instantaneous transfer to stand-by batteries
