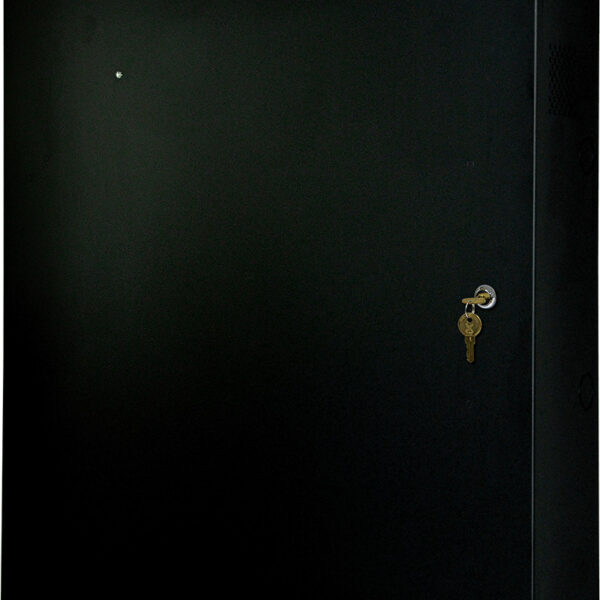

Altronix T3SSK75F28D 28-Door Access and Power Integration Kit – Trove3SS3 with eFlow104NB, eFlow102NB, (3) ACM8CB, ACM4CB, (2) PD16WCB, RSB2

Altronix T3SSK75F28D consists of a high-capacity enclosure with removable backplane, providing 12VDC @ 24VDC at 20A total for up to twenty-eight (28) locking devices or accessories. This unit easily combines Altronix power/accessories with various combinations of S2 boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.

Features

• 24VDC and 12VDC power supply/chargers
• Accommodates S2-INST Installation Kit
• Convenient knockout configuration:
  – One (1) single knockout 2.415” (2” Conduit)
  – One (1) double knockout 1.948” (1.5” Conduit) / 1.701” (1.25” Conduit)
  – Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit)
• 16 AWG galvanized steel backplane simplifies board layout and wire management
• Supervision – AC Fail
• Supervision (cont’d)
  – Low Battery and Battery Presence
  – Low power shutdown
• Agency Listings:
  – All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly, Installation Guides for further information
  – UL: UL294 – Access Control System
  – cUL: CAN/ULC – s319-05 – Electronic Access Control Systems
  – CE European Conformity
• Enclosure accommodates up to four (4) 12VDC/12AH batteries
