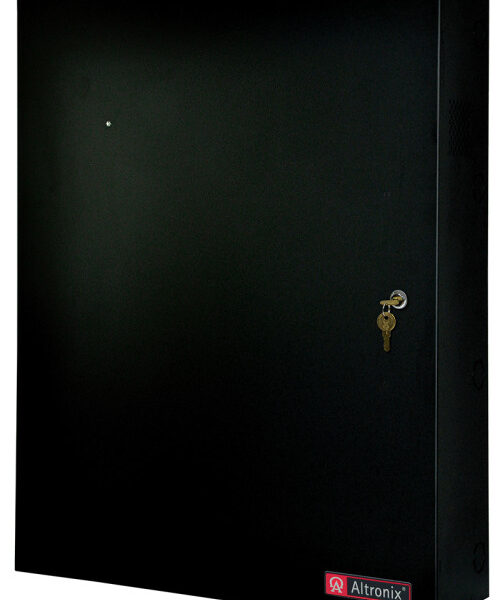

Altronix T3VK75F20 20-Door Access and Power Integration Kit

Altronix T3VK75F20 kit consists of Trove3 enclosure, TV3 VertX/Altronix backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/chargers, two (2) 8-output fused access power controllers, one (1) 4-output fused access power controller and one (1) 8-output fused power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches. This kit also accommodate up to ten (10) HID VertX modules for up to twenty (20) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Features

• One (1) 24VDC and one (1) 12VDC power supply/chargers
• Accommodates up to ten (10) VertX V100, V200, V300, V1000, V2000 modules
• Convenient knockout configuration:
  – Single 2.415” diameter knockout located top of enclosure
  – Two (2) double knockouts (1.948” and 1.5”)
  – Thirteen (13) double knockouts (1.115” and 1.362”)
• 16 AWG galvanized steel backplane simplifies board layout and wire management
• Supervision:
  – AC Fail
  – Low Battery and Battery Presence
  – Low power shutdown
• CE European Conformity
• Enclosure accommodates up to four (4) 12VDC/12AH batteries
