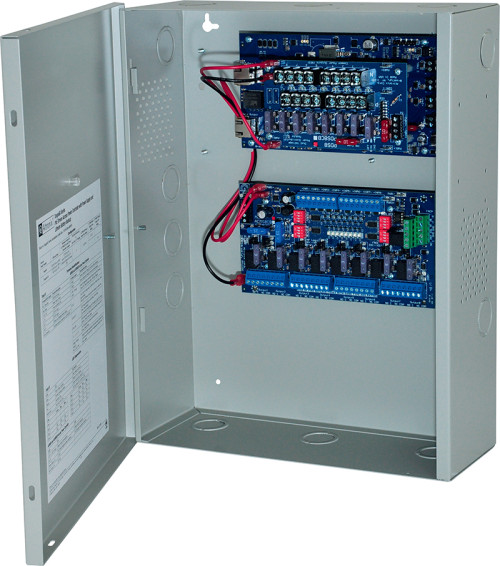

Altronix TANGO8AP PoE Driven Multi-Output Power Supply/Charger With Access Power Controller, BC400 Enclosure

Altronix Tango8AP PoE Driven Multi-Output Power Supply/Charger With Access Power Controller converts an IEEE802.3bt PoE input into eight (8) regulated 24VDC and/or 12VDC outputs and eight (8) protected 24VDC and/or 12VDC outputs up to 65W. It eliminates the need for a high voltage inside of an enclosure. Tango8AP(CB) is designed to support a single 12VDC LiFePO4 (Lithium Iron Phosphate) battery for 12VDC and 24VDC backup.

Altronix TANGO8AP – Key Features

• Hi-PoE Utilization: Utilizes Hi-PoE (802.3bt) to simultaneously deliver 12VDC & 24VDC for powering access control and security devices, ensuring reliable performance for critical systems.
• Battery Backup: Built-in Lithium Iron Phosphate (LiFePO4) battery charger for optimized power backup, providing peace of mind during power outages.
• Compatibility: Operates with Altronix NetWay Midspans such as NetWay8BT, enhancing system integration.
• Easy Installation: Can be installed by any low voltage contractor, simplifying setup and reducing installation costs.
• Control Features: Eight (8) independently controlled outputs allow for tailored power management across multiple devices.
• Auxiliary Outputs: Eight (8) auxiliary power outputs (unswitched) provide flexibility for additional devices.
• Fire Alarm Disconnect: Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs, increasing safety and compliance.
• Alarm Output Relay: Alarm output relay indicates that FACP input is triggered, ensuring prompt alerts in emergencies.
• Additional Protection: Eight (8) additional fuse or PTC protected power outputs add an extra layer of safety for connected devices.
• Output Selection: Any of the sixteen (16) outputs are selectable for 12VDC or 24VDC, providing versatility for various applications.
• Service Mode: Individual outputs may be set to OFF position for servicing, allowing for safe maintenance without disrupting the entire system.
• Supervision:
  – AC Fail
  – Battery Fail and Battery Presence, ensuring continuous monitoring of power conditions.

Altronix TANGO8AP – Detailed Specifications
