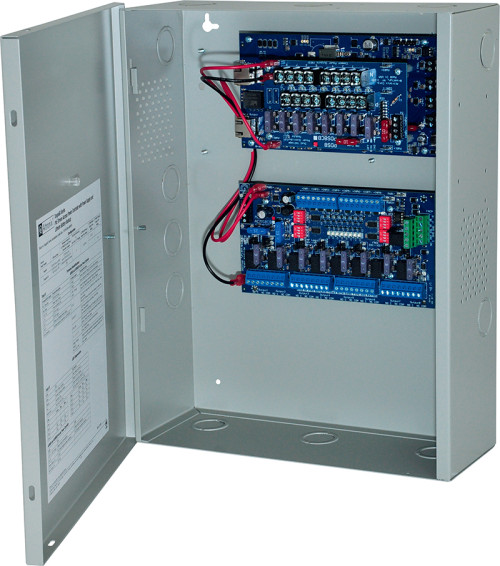

Altronix TANGO8APCB PoE Driven Multi-Output Power Supply/Charger With Access Power Controller, BC400 Enclosure

Altronix TANGO8APCB PoE Driven Multi-Output Power Supply/Charger With Access Power Controller is an advanced solution that converts an IEEE802.3bt PoE input into eight regulated outputs. It maximizes efficiency by providing both 12VDC and 24VDC outputs, with a robust design that supports a Lithium Iron Phosphate battery for reliable backup power. This system is ideal for powering access control and security devices while eliminating the complexities of high voltage installations.

Altronix TANGO8APCB Features

• PoE Utilization: Utilizes Hi-PoE (802.3bt) to simultaneously deliver 12VDC & 24VDC, making it perfect for access control and security devices.
• Battery Charger: Built-in Lithium Iron Phosphate (LiFePO4) battery charger ensures optimized power backup for uninterrupted operation.
• Compatibility: Operates seamlessly with Altronix NetWay Midspans such as NetWay8BT, enhancing system integration.
• Easy Installation: Can be installed by any low voltage contractor, simplifying setup and reducing installation costs.
• Independent Control: Eight independently controlled outputs allow customized power management for various devices.
• Auxiliary Outputs: Eight auxiliary power outputs (unswitched) provide additional flexibility for connecting extra devices.
• Fire Alarm Disconnect: Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all outputs, enhancing safety protocols.
• Alarm Output Relay: Alarm output relay provides alerts when FACP input is triggered, improving system monitoring.
• Fuse Protection: Eight additional fuse or PTC protected power outputs ensure safety and reliability for connected devices.
• Output Selection: Any of the sixteen outputs are selectable for 12VDC or 24VDC, accommodating diverse device requirements.
• Service Mode: Individual outputs can be set to OFF position for servicing without disrupting the entire system.
• Supervision Features: Comprehensive supervision includes AC Fail, Battery Fail, and Battery Presence alerts for proactive maintenance.

Altronix TANGO8APCB Detailed Specifications
