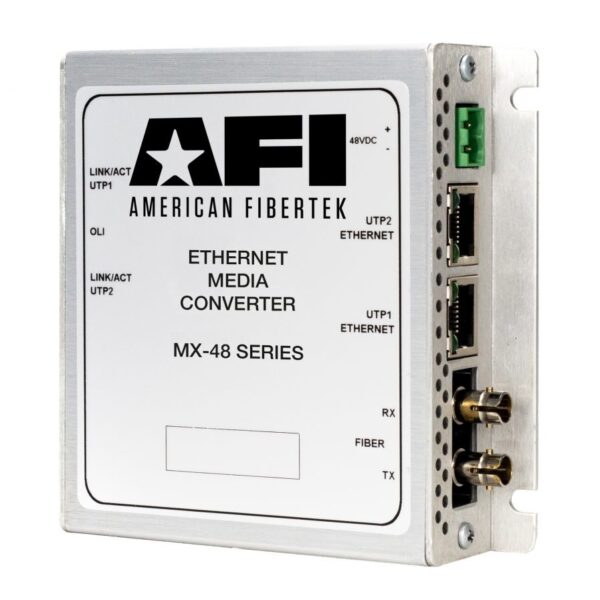

The MX-48-LX-1510-SL-SC from American Fibertek is an ethernet LX fiber port 1510nm + 2 RJ45 ports 10/100/1000 sm 2 fiber module. The American Fibertek MX-48-LX-1510-SL-SC transmits and receives (2) copper 10/100/1000Base‐T Ethernet signals at the RJ45 ports and (1) optical 1000 Base‐X over 1 or 2 singlemode fibers. The system is comprised of two units forming a point‐to‐point communications link.
The system is designed to be completely transparent with an auto negotiation features which automatically configures the unit for the correct speed (10/100/1000Base‐T). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.
American Fibertek MX-48-LX-1510-SL-SC Key Features
- Complete Fiber Optic to Twisted Pair Media Interface: Provides seamless connectivity between fiber optics and copper networks, ensuring versatility in installations.
- Auto MDI / MDIX Detection: Automatically detects and configures for straight-through or crossover cabling, simplifying setup and reducing installation errors.
- Auto Negotiate 10/100/1000 Ports: Ensures optimal performance by automatically adjusting the port speed to match connected devices for enhanced data transfer efficiency.
- Link and Activity Indicators for UTP and Fiber Ports: Offers immediate visual feedback on the status of connections, aiding in troubleshooting and maintenance.
- Singlemode Fiber Version Available: Supports long-distance communication needs, making it suitable for various applications and environments.
American Fibertek MX-48-LX-1510-SL-SC Detailed Specifications
| Type | Ethernet LX Fiber Port with 2 RJ45 Ports |
| Wavelength | 1510nm |
| Data Rate | 10/100/1000 Mbps |
| Ports | 2 RJ45 and 1 Optical Fiber |
| Fiber Type | Singlemode |
| Dimensions | Compact design for easy installation |
| Power Supply | Standard power input for reliable operation |
| Operating Temperature | Wide range for diverse environments |
