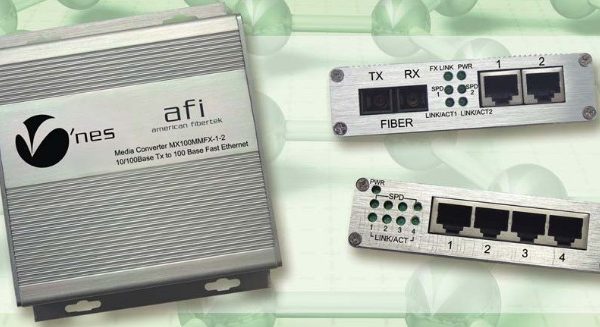

American Fibertek MX2-MM-LX-SC 10/100/1000 Mb/s, Multimode, 2 Fiber

American Fibertek’s V’nes MX Media Convertor series enables network managers to connect 10/100 Fast Ethernet or 1000 Mbps Gig E twisted pair to fiber optic cabling for wide bandwidth, cost-effective short or long-distance transmission. The multiple port design reduces installation and cabling, allowing for multiple inputs to run on a single path. The Media Convertor MX series provides optional single fiber WDM technology, combining dual fiber cable into a single cable for greater cost savings. Front panel LEDs provide easy status checking along with Link Fault Pass Through and MDI/MDI-X for easy installation. When combined with Commander series switch products, the MX provides easy and cost-effective solutions to convert any number of ports from twisted pair to fiber.

Features

• Converts: 10 Base-T/100 Base-TX /1000Base-T to 1000Base-LX for versatile connectivity options.
• Distance: Distances up to 500m (Multi-mode) or 30Km (Single-mode) ensuring flexibility for various network layouts.
• Compliance: Complies with 802.3u 100 BaseT, 802.3ab 1000 BaseT, 802.3z 1000Base-LX standards for reliable performance.
• Switching Mechanism: Store and forward switching mechanism enhances data integrity.
• Auto-Negotiation: Automatically negotiates the best speed for seamless connectivity.
• MDI/MDIX: Auto-Crossover supported for simplified installation without the need for crossover cables.
• LED Indication: LED indicators (LX Link, Link/Act1, SPD1, Link/Act2, SPD2, Power) provide quick status checks for operational efficiency.

American Fibertek MX2-MM-LX-SC Detailed Specifications
