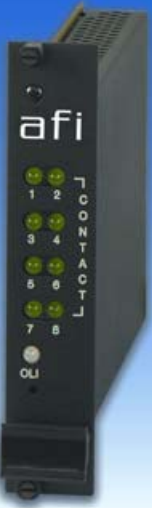

American Fibertek RT-82SL 16 Channels Contact Closure System with Power Fail Safe, Singlemode

The American Fibertek 82SL Series multiplexes 16 channels of dry latching contact closure on one singlemode fiber. A user-selectable feature allows the contact status to be maintained unchanged or reset through power-cycle and loss-of-optical-power. A reset button is available to clear all contact status to the default state. Individual channel LEDs on the transmitter and the receiver units indicate the channel status. These systems require no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual indication of system status. Equipment may be ordered as stand alone modules or rack cards that are mounted in the SR-20D/2 or SR-20R/1 AFI Card Cages.

Features

• Form-C (Normally Open or Normally Closed) Dry Contact Closure: Provides flexibility in installation and compatibility with various systems.
• Latching Relays reduce power requirement: Enhances energy efficiency and prolongs system reliability.
• User-Selectable feature maintains Contact Status through Power-Cycle and Loss-of-Optical-Power: Ensures consistent performance and eliminates unexpected resets.
• User Control to Reset all Contact Status: Allows for quick troubleshooting and system management.
• Diagnostics: DC Power, Optical Presence, and Channel Indicators: Provides immediate visual feedback on system health, facilitating easier maintenance.
• High Density DB26 Data Connector with Adaptor to screw terminal: Simplifies connections and enhances installation efficiency.
