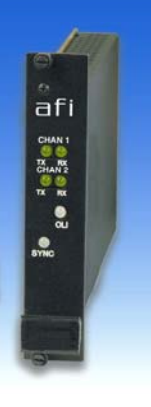

The RT-9P59SL from American Fibertek supports multi-protocol Bi-directional data & contact rack Card, Tx, 21dB, single mode. Transmits up to 2 channels of either high-quality, state of the art, 24bit digital audio and/or multi-protocol data and/or contact closure channel on one singlemode optical fiber. Any combination of audio, data or contact is available up to 2 channels. This link is capable of providing an optical loss budget of 21dB utilizing 1310nm/1550nm wavelength lasers. Designed to be completely transparent, this system requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual indication of system status.
American Fibertek RT-9P59SL Unique Features
- 24Bit Digital Audio: Ensures high-quality sound transmission for audio applications, enhancing clarity and fidelity.
- Diagnostics: Audio, Data, Contact, Power & Optical Presence: Provides comprehensive system monitoring, allowing for quick troubleshooting and maintenance.
- Automatic Resettable Fuses on Power Lines: Protects the equipment from overloads, ensuring longevity and reliability without manual intervention.
American Fibertek RT-9P59SL Detailed Specifications
| Feature | Details |
| Model | RT-9P59SL |
| Transmission Capacity | Up to 2 channels of 24bit digital audio, multi-protocol data, and contact closure |
| Optical Fiber Type | Singlemode |
| Optical Loss Budget | 21dB |
| Wavelengths Used | 1310nm/1550nm |
| Installation | No field adjustments required |
| Maintenance | No additional maintenance required after installation |
