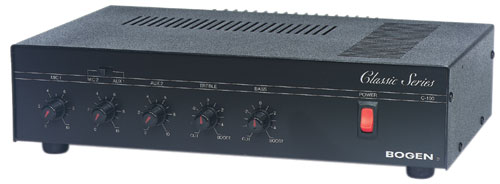

Bogen C100 100W Classic Series Public Address Amplifier

The C100 from Bogen is a classic series public address amplifier 100W reliable mixer/amplifier. This amp uses discreet complementary transistor circuitry for reliable power at each output stage. The rear panel has variable output taps at 4/16 ohms and 25/70V. This amp has 4 inputs with independent volume controls plus treble and bass controls. Output jacks are provided for recording or secondary amplifiers.

Bogen C100 Amplifier Features

• Power Output: 100 watts – Delivers robust sound reinforcement for various applications.
• Input Options: 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX – Versatile connectivity for multiple audio sources.
• Volume Control: Each input controlled by an independent volume control – Tailor sound levels for different audio sources.
• Sound Adjustment: Treble and bass controls – Fine-tune audio for optimal sound quality.
• AUX Muting: AUX muting by external contact closure for push-to-talk microphones – Ensures clear communication during announcements.
• Telephone Paging: TEL input for telephone paging applications – Integrate phone announcements seamlessly.
• VOX Mute: TEL input voice-activated (VOX) mute over AUX input – Automatically mutes AUX when receiving calls for clear audio management.
• Variable Threshold: Variable threshold for TEL input voice-activated AUX mute – Customize sensitivity for various environments.
• Multiple Outputs: Outputs for 4-ohm (direct) and 16-ohm, 25V and 70V speaker systems (transformer coupled) – Flexible installation options for different speaker setups.
• Recording Output: Output jack to connect a recording device or booster amplifier – Ideal for recording or expanding the sound system.
• Safety Features: Thermal protection and electronic shutdown – Prevents damage and ensures reliable operation.
• Certification: Listed to UL Standard 60065 for U.S. and Canada – Meets rigorous safety standards for peace of mind.

Bogen C100 Detailed Specifications
